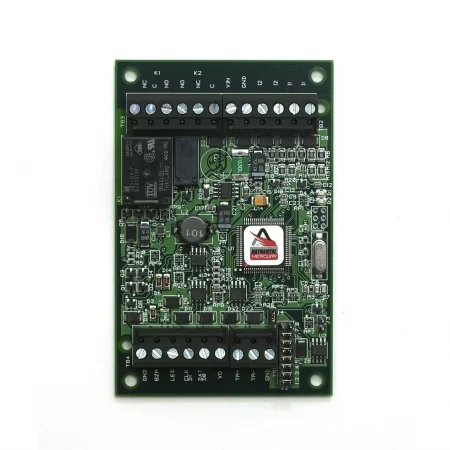

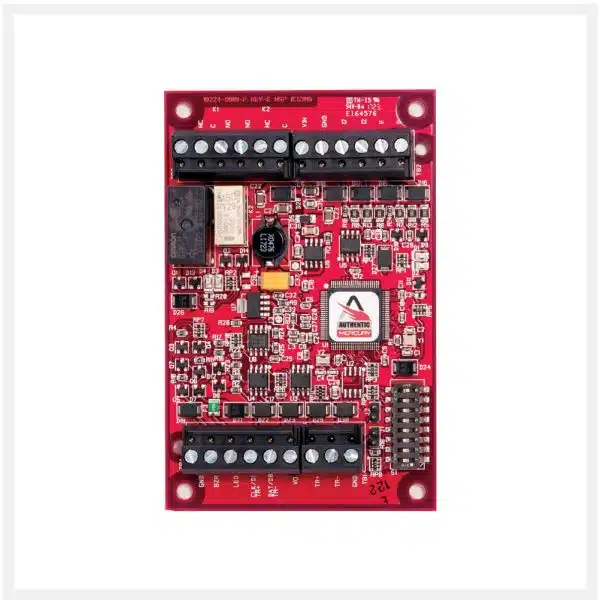

LenelS2TM offers a Single Reader Interface (SRI) module
for access control solutions. Access control card readers,
keypads, or readers with keypads that use standard Wiegand
Data1/Data0, Supervised or Unsupervised F2F, or Clock/
Data communication are supported, as are those supporting
the bidirectional RS-485 Open Supervised Device Protocol
(OSDP™). Lock, unlock, and facility code offline access modes
are supported on all readers connected to the SRI. Each SRI
supports up to 16 different card formats as well as issue codes
for both magnetic and Wiegand card formats.
The SRI provides a vital link between the Intelligent System
Controller (ISC) and the card reader attached to the interface.
As many as 32 SRI modules can be multidropped using RS-485
2-wire communication up to 4,000 feet (1219 m) per port
away from the ISC. Each SRI module is individually addressed
for increased reporting capabilities with OnGuard® access
control software applications. The SRI includes two inputs
that support normally open, normally closed, supervised, and
non-supervised circuits. Two output relays support fail-safe or
fail-secure operation
Features & Functionality
• 12 or 24 VDC power supply
• Supports Data1/Data0, Clock/Data, Supervised and
Unsupervised F2F and OSDP-compatible RS-485 readers and
keypads
• Supports Open Supervised Device Protocol (OSDP) readers,
including biometric template transfer and Secure Channel
encryption
• Two Form-C relay outputs (5 A door strike and 1 A aux relays)
• Up to 16 different card formats
• Issue code support
• Downloadable firmware
• Door contact open or closed, supervised or non-supervised
• REX push-button monitor – supervised or non-supervised
• Strike control output
• Bicolor or 2-wire reader status LED support
• Reader beeper control
• Plastic mounting channel
• Support for offline reader access mode
• Elevator control, support for 128 floors
• Advanced Encryption Standard (AES) 128-bit algorithm for
communications to ISC
• Compatible with current and previous versions of OnGuard
Extended Functionality
• Connect one FIPS-201 reader for embedded authentication
(when used with LNL-4420 and appropriate HID® and OnGuard
software and licenses
