Product Overview
Kidde brand intelligent life safety systems offer the power of high-end intelligent processing in configurations that deliver uncomplicated solutions for small to mid-sized applications. With intelligent detection, rotary addressing, automatic device mapping, optional Ethernet connectivity, and a full line of easily-configured optional cards and modules, these flexible systems offer versatility that benefits building owners and contractors alike.

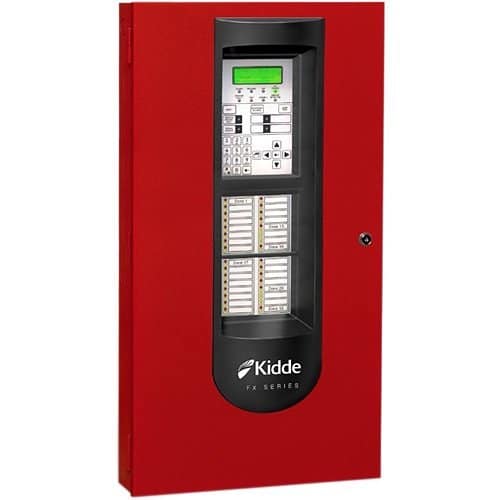

The FX-1000 provides one Class A or Class B intelligent device loop that supports up to 250 device addresses. Loop controller modules may be added in combination to expand total system capacity in 250-point increments up to 1,000 device addresses. The FX-1000 panel includes four notification appliance circuits (NACs) that may be wired for either Class A or Class B operation.
Main Features
- Four loop system
- 1000 point capacity max
- Auto-programming speeds installation time
- Easy-to-configure rotary addressing
- Class B or Class A wiring
- Ground fault detection by module
- Can use existing wiring for most retrofit applications
- Adjustable detector sensitivity
- Standalone operation
- Transmission test frequency by hour
