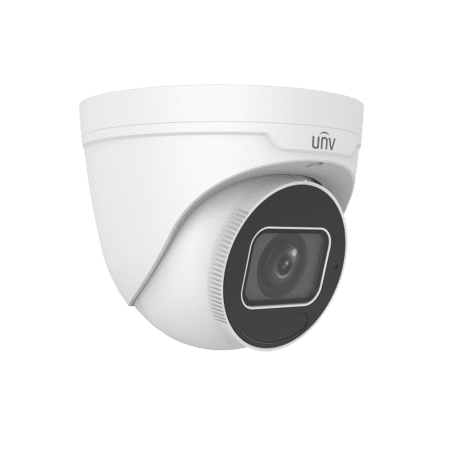

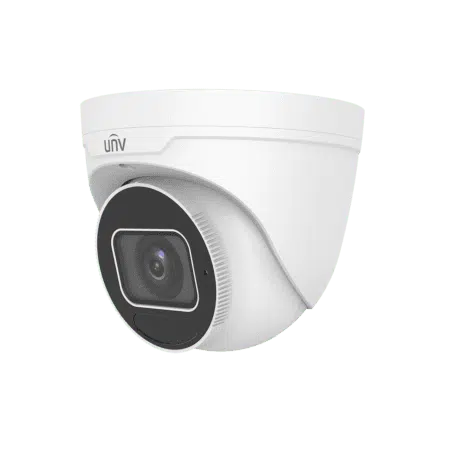

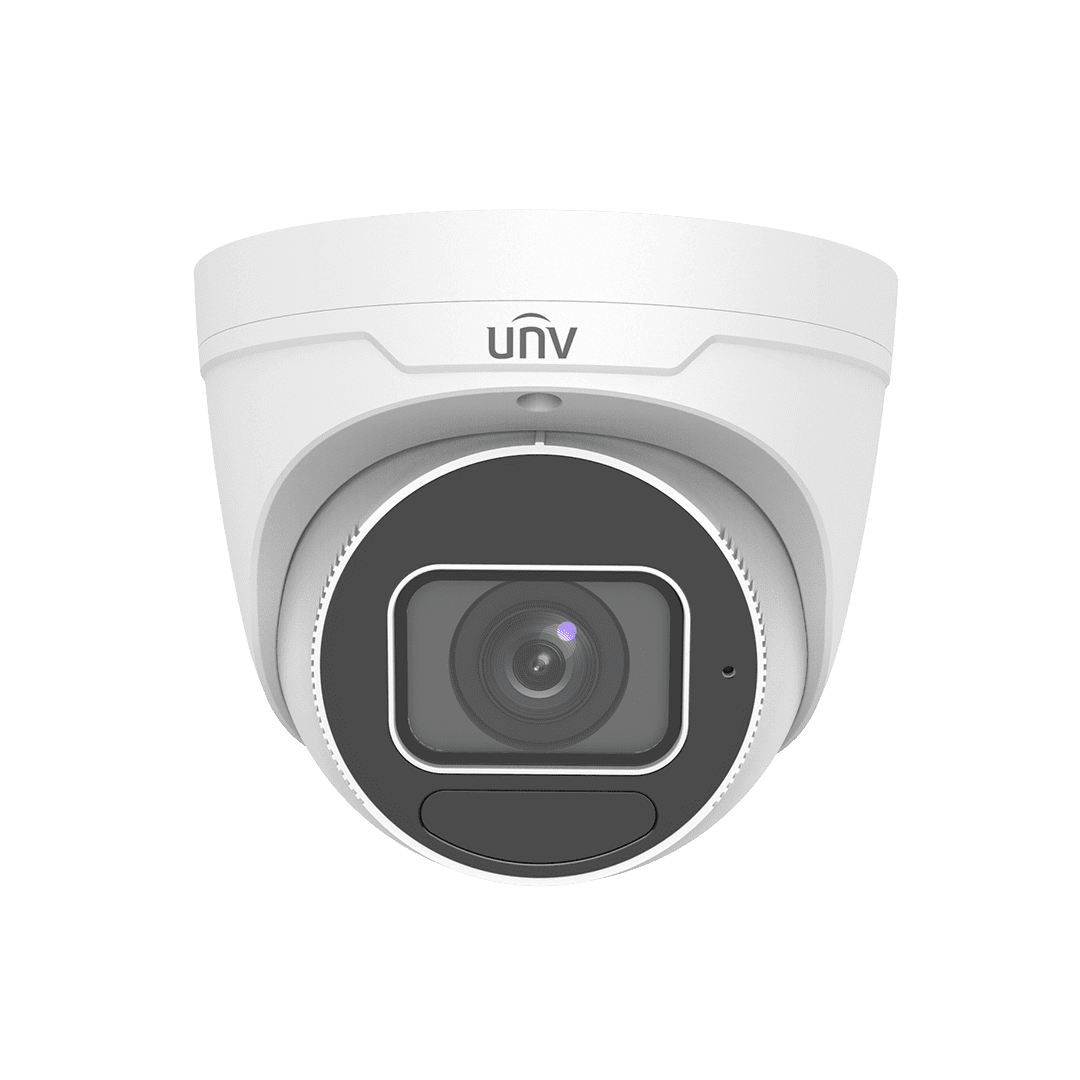

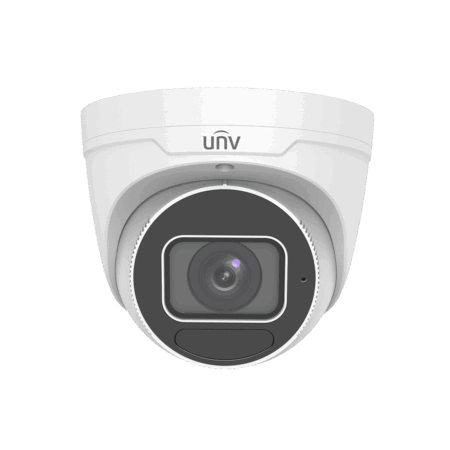

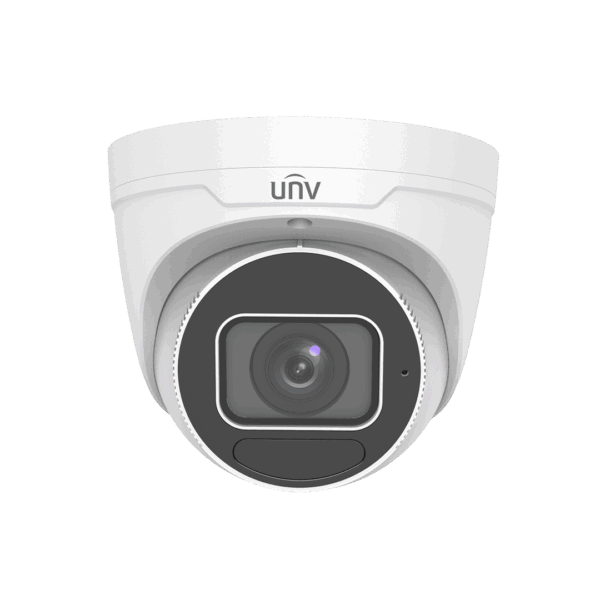

IPC3638SB-ADZK-I0 |
| Camera |
| Max Resolution |
8 MP |
| Sensor |
1/2.8" CMOS |
| Min. Illumination |
Colour: 0.0025 lux (F1.6, AGC ON)
0 lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120 dB |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N |
>52 dB |
| Lens |
| Focal Length |
2.8 to 12 mm |
| Iris |
F1.6 |
| Field of View (H) |
107.4°~ 29.2° |
| Lens Type |
Motorized |
| Field of View (V) |
54.2°~ 16.3° |
| Field of View (D) |
111.0°~33.1° |
| Iris Type |
Fixed |
| DORI |
| DORI Distance (Lens) |
2.8mm, 12mm |
| DORI Distance (Detect) |
86.9m(285.1ft), 372.4m(1121.8ft) |
| DORI Distance (Observe) |
34.8m(114.2ft), 149.0m(488.8ft) |
| DORI Distance (Recognize) |
17.4m(57.1ft), 74.5m(244.4ft) |
| DORI Distance (Identify) |
8.7m(28.5ft), 37.2m(112.0ft) |
| Illuminator |
| Illumination Distance (IR) |
40 m (131.2 ft) |
| Wavelength |
850 nm |
| IR On/Off Control |
Auto/Manual |
| Supplemental Light |
IR |
| Video |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| U-code |
Support |
| ROI |
Support |
| Video Stream |
Triple Streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| Image |
| Dewarping |
Support |
| White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis |
N/A |
| People Counting |
Support People Flow Counting and Crowd Density Monitoring |
| Events |
| Basic Detection |
Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
N/A |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Network |
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, SSH |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client |
UNV-Link, UNV-Link Pro, EZStation |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Serial Port |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output |
N/A |
| Certification |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B) |
| Safety |
CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection |
IP67 (IEC 60529)
IK10 (IEC 62262) |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption |
Max 9.0W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
Ø129 x 110mm (Ø5.1” x 4.3”) (Ø x H) |
| Weight |
0.69kg (1.52lb) |
| Storage Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
6 KV |
| Reset Button |
Support |
| Material |
Metal |
| Web Client Language |
20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
