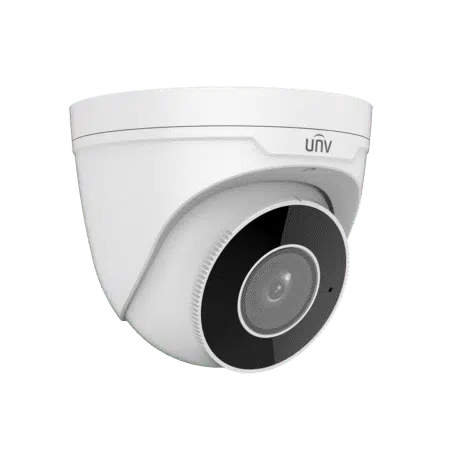

IPC3634SR3-ADZK-G |
| Camera |
| Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| DORI Distance |
> Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
42 |
16.8 |
8.4 |
4.2 |
| 12 |
180 |
72 |
36 |
18 |
| Angle of View (H) |
102.79°~ 30.86° |
| Angle of View (V) |
54.50°~ 17.49° |
| Angle of View (O) |
106.94°~35.49° |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 75° |
Rotate: 0° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction |
2D/3D DNR |
| S/N |
>56dB |
| IR Range |
Up to 40m (131ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Audio |
| Audio Compression |
G.711 |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR, NAS(NFS) |
| Smart |
| Behavior Detection |
Cross line, intrusion(based on human body detection) |
| motion detection, tampering alarm, audio detection |
| General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation EZView EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface |
| Network |
10M/100M Base-TX Ethernet |
| Built-in Mic |
Supported |
| Certifications |
| Certifications |
UL: UL60950-1 FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 8.0W |
| Dimensions (Ø x H) |
Φ129 x 110mm (Ø5.1” x 4.3”) |
| Net Weight |
0.67kg (1.48lb) |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
6KV |
| Ingress Protection |
IP67 |
| Reset Button |
Supported |
