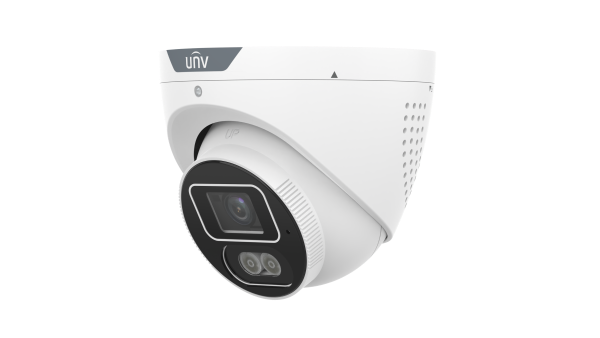

IPC3618SB-ADF28KMC-I1 |
IPC3618SB-ADF40KMC-I1 |
| Camera |
| Max Resolution |
8 MP |
| Sensor |
1/2.7" CMOS |
| Min. Illumination |
Color: 0.002 Lux (F1.4, AGC ON), 0 Lux with light |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle |
Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N |
> 56 dB |
| WDR |
130 dB |
| Lens |
| Focal Length |
2.8 mm |
4.0 mm |
| Iris Type |
Fixed |
| Iris |
F1.4 |
| Field of View (H) |
98.7° |
87.1° |
| Field of View (V) |
53.6° |
50.1° |
| Field of View (D) |
113.4° |
100.2° |
| Lens Type |
Fixed |
| DORI |
| DORI Distance (Lens) |
2.8 mm |
4 mm |
| DORI Distance (Detect) |
84.0 m (275.6 ft.) |
120.0 m (393.7 ft.) |
| DORI Distance (Observe) |
33.6 m (110.2 ft.) |
48.0 m (157.5 ft.) |
| DORI Distance (Recognize) |
16.8 m (55.1 ft.) |
24.0 m (78.7 ft.) |
| DORI Distance (Identify) |
8.4 m (27.6 ft.) |
12.0 m (39.4 ft.) |
| Illuminator |
| Supplemental Light |
Dual light |
| Illumination Distance (IR) |
30 m (98.4 ft) |
| Illumination Distance (Warm Light) |
30 m (98.4 ft) |
| IR On/Off Control |
Auto/Manual |
| Wavelength |
850 nm |
| Light On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;
Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| U-code |
Support |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Support |
| Video Stream |
Triple streams |
| Image |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital defog |
| Intelligent |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis |
N/A |
| People Counting |
Support people flow counting and crowd density detection |
| Events |
| Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
MicroSD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Network |
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, HTTPS, SMTP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Client |
EZStation, APP |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Serial Port |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
Support |
| WIFI |
N/A |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output |
N/A |
| Certification |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
FCC (FCC 47 CFR part15 B) |
| Safety |
CE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment |
CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Protection |
IP67 (IEC 60529) |
| General |
| Power |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption |
Max. 11.5 W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
Ø111 mm × 98 mm (Ø4.4" × 3.8") (Ø × H) |
| Weight |
0.47 kg (1.04 lb) |
| Material |
Metal |
| Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
4 KV |
| Reset Button |
N/A |
| Web Client Language |
20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
