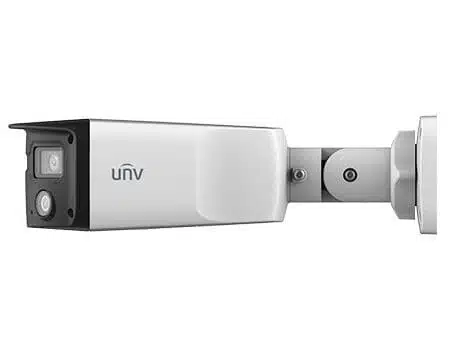

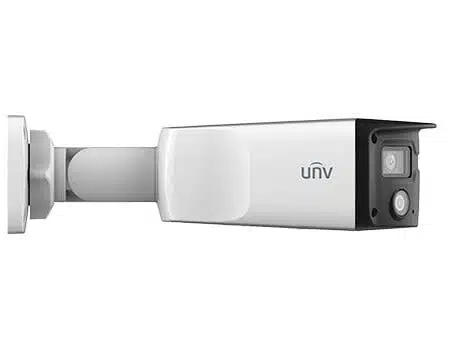

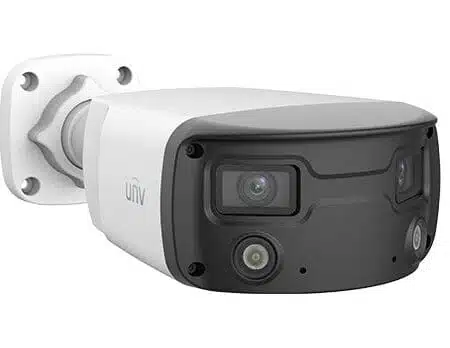

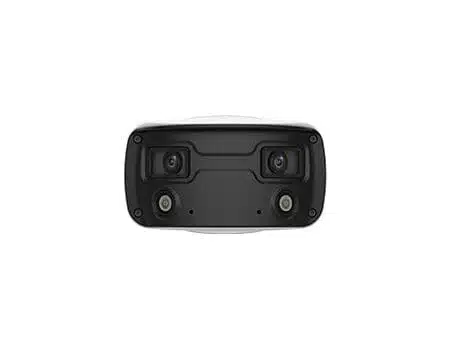

IPC2K24SE-ADF40KMC-WL-I0 |
| Camera |
| Sensor |
1/2.9″, 4.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.0005 lux (F1.0, AGC ON) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
Rotate: 0° ~ 360° |
| WDR |
DWDR |
| S/N |
>56dB |
| Lens |
| Lens |
2 * 4.0mm@F1.0 |
| Iris |
Fixed |
| Field of View (H) |
160.00°±10° |
| Field of View (V) |
43.22° |
| Field of View (D) |
180.13°±10° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect（m） |
Observe（m） |
Recognize（m） |
Identify（m） |
| 4.0 |
64.3 |
25.7 |
12.9 |
6.4 |
| Illuminator |
| LED Distance |
Up to 30m (98ft) |
| LEDs Number |
2 |
| LED On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (3840*1080), Max 25fps（Human Body Detection off）
Sub Stream: 1920*540, Max 25fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Video Stream |
Double streams |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart Illumination |
Support |
| Flip |
N/A |
| Dewarping |
N/A |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Events |
| Basic Detection |
Human Body Detection ,motion detection, tampering alarm, audio detection |
| General Function |
Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication |
| Audio |
| Audio Compression |
G.711 |
| Audio Bitrate |
64 Kbps |
| Two-way audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
1/1 |
| RS485 |
N/A |
| Built-in Mic |
Built-in two mics |
| Built-in Speaker |
Support |
| WIFI |
N/A |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output |
N/A |
| Certifications |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 6.5W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (L × W × H) |
273× 130 × 76mm (10.7” × 5.1” × 3.0”) |
| Weight |
0.95kg (2.09lb) |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| surge protection |
4KV |
| Reset Button |
Support |
