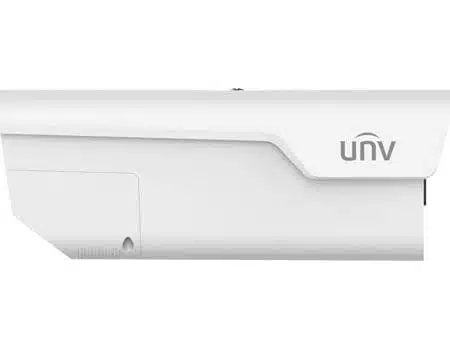

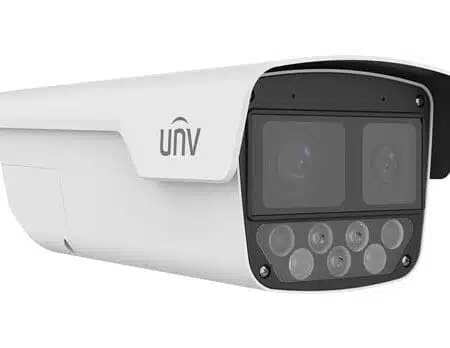

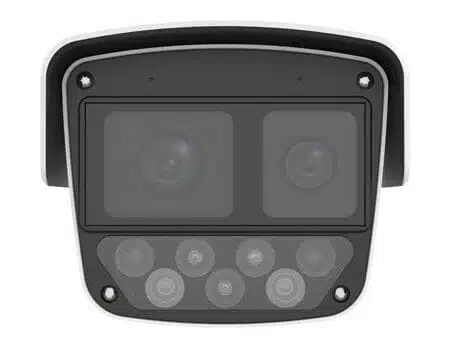

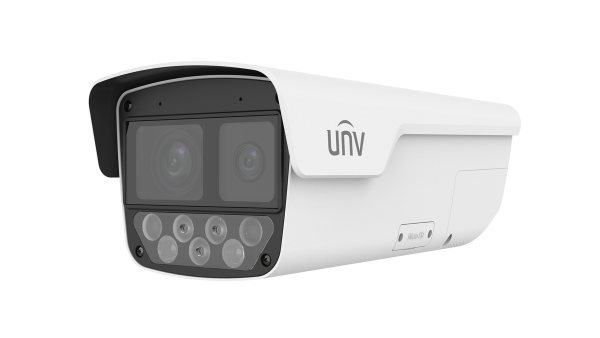

IPC28184EA-ADX5K-F40-I1 |
Camera |
|
Sensor |
Channel 1 : 1/1.8", 4.0 megapixel, progressive scan, CMOS
Channel 2 : 1/1.8", 8.0 megapixel, progressive scan, CMOS |
Min. Illumination |
Channel 1 : Colour:0.0005lux (F1.0, AGC ON)
Channel 2 : Colour:0.005lux (F1.6, AGC ON)
0 lux with IR |
Day/Night |
Channel 2 : IR-cut filter with auto switch (ICR) |
Shutter |
Auto/Manual, 1 ~ 1/100000s |
Angle Adjustment |
Channel 2 : Tilt: -10° to 10° (electric control , for installation and debugging) |
WDR |
120dB |
S/N |
>56dB |
Lens |
|
Lens type |
Channel 1 : 4mm
Channel 2 : 10-50mm @F1.6, AF automatic focusing and motorized zoom lens |
Optical Zoom |
Channel 2 : 5X |
Iris |
Channel 1 : Fixed aperture
Channel 2 : DC-iris |
Field of View (H) |
Channel 1 : 94.7°
Channel 2 : 33.8°~8.4° |
Field of View (V) |
Channel 1 : 50.3°
Channel 2 : 18.8°~4.6° |
Field of View (D) |
Channel 1 : 116.5°
Channel 2 : 39.9°~10.0° |
DORI |
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
10 |
292.5 (959.6ft) |
117.0 (383.9ft) |
58.5 (191.9ft) |
29.3 (96.0ft) |
50 |
1237.5 (4060.0ft) |
495.0 (1624.0ft) |
247.5 (812.0ft) |
123.8 (406.0ft) |
4 |
79.1(259.6ft) |
31.7(103.9ft) |
15.8(51.9ft) |
7.9(26.0ft) |
Illuminator |
Warm Light Distance |
Up to 30m (98.43ft) |
IR Range |
Up to 50m (164.0ft) IR range |
IR Wavelength |
750nm |
IR On/Off Control |
Auto/Manual |
Video |
Video Compression |
Ultra 265,H.265,H.264,MJPEG |
Frame Rate |
Channel 1 :
Main Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Channel 2 :
Main Stream: 8MP(3840*2160),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps |
U-code |
Support |
ROI |
Up to 8 ROIs |
Video stream |
Triple streams |
OSD |
Up to 8 OSDs |
Privacy Mask |
Up to 8 areas(black/mosaic) |
Image |
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction |
2D/3D NR |
Smart IR |
Support |
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
HLC |
Support |
BLC |
Support |
Defog |
Digital Defog |
Intelligent (Channel 2 Only) |
Video Metadata |
Support collecting the attributes and images of pedestrian, vehicle and non-motor vehicle, offer information for further data analysis |
Smart intrusion Prevention |
Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
Events |
Basic Detection |
Motion detection, Audio detection, Tampering alarm |
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
Audio Compression |
G.711U,G.711A |
Audio Bitrate |
64 Kbps |
Two way audio |
Support |
Suppression |
Support |
Sampling Rate |
8KHz |
Storage |
Edge Storage |
Micro SD, up to 256 GB |
Network Storage |
ANR |
Network |
Protocols |
IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
Client |
EZStation
EZView
EZLive |
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
Interface |
Audio I/O |
2/1 |
Alarm I/O |
3/2 |
Serial Port |
1 RS485 |
Built-in Mic |
Support |
Built-in Speaker |
Support |
Network |
1 x RJ45 10M/100M/1000M Base-TX Ethernet |
Certifications |
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General |
Power |
AC24V±25% |
Power consumption: Max 31w |
Dimensions (Ø x H) |
Φ326x147x121mm(Φ12.8’’x5.8’’x4.8’’) |
Weight |
2.11kg |
Working Environment |
-30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment |
-40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
Surge protection |
Support |
Reset button |
Support |
