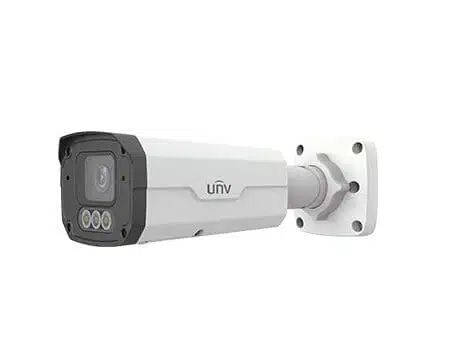

IPC2322SB-HDZK-I0 |
| Camera |
| Sensor |
1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination |
Colour:0.001 lux (F1.2, AGC ON)
0 lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120dB |
| S/N |
>52dB |
| Lens |
| Lens type |
[email protected], AF automatic focusing and motorized zoom lens |
| Iris |
Fixed |
| Field of View (H) |
98.2°~30.6° |
| Field of View (V) |
53.3°~17.3° |
| Field of View (D) |
127.7°~37.6° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.7 |
70.9(232.5ft) |
28.4(93.0ft) |
14.2(46.5ft) |
7.1(23.3ft) |
| 13.5 |
247.5(812.0ft) |
99.0(324.8ft) |
49.5(162.4ft) |
24.8(81.2ft) |
| Illuminator |
| IR Range |
Up to 50m (164 ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 1080P (1920*1080),Max 60fps;
Sub Stream: 1080P (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| ROI |
Up to 8 areas |
| Video stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas per scene |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis |
People counting, support people flow counting and crowd density monitoring |
| Events |
| Basic Detection |
Motion detection, Audio detection, Tampering alarm |
| General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
| Security |
Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZLive
EZview |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Interface |
| Audio I/O |
1/1 |
| Alarm I/O |
1/1 |
| Video output |
1 BNC(For debugging) |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Certification |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
| General |
| Power |
DC12V(±25%), PoE(IEEE 802.3af) |
| Power consumption: Max 8W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (L x W x H) |
245.0x86.0x85.0mm (9.6’’x3.4’’x3.4’’) |
| Weight |
0.92kg(2.03lb) |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge protection |
6KV |
| Reset button |
N/A |
