Inovonics EN1210EOL EchoStream Single Input Universal with
Mounting bracket included for quick and easy installation
Can be used with almost any standard NO/NC contact
Includes case tamper
$107.99
Product Overview

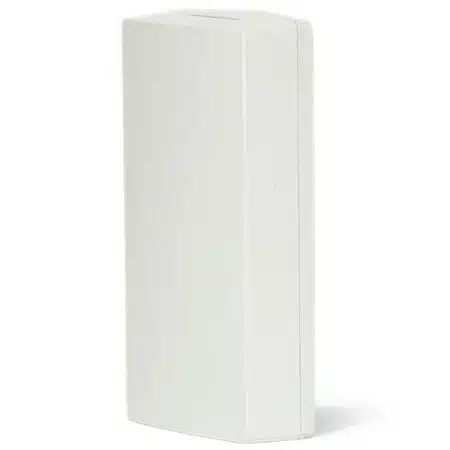

The Inovonics EN1210EOL single input universal with EOL is a universal transmitter with an end of line resistor. The included 2.2k ohm resistor is required to operate the EN1210EOL.
Main Features
- Mounting bracket included for quick and easy installation
- Can be used with almost any standard NO/NC contact
- Includes case tamper protection
- Includes case tamper protection
- Dimensions: 3.5” x 1.7” x 0.9” (8.9 x 4.3 x 2.3 cm )
- Panasonic CR123A Battery
- External Contacts: Normally open or normally closed
- Required Cabling: 14-22 gauge wire, unshielded
- EchoStream frequency: 902-928 MHz, frequency hopping spread spectrum
- Check-in time frequency: 3 minutes
| Specifications | |||||||||||
| Part Number | EN1210EOL | Product Line | EchoStream | Product Model | EN1210EOL | Product Name | Single Input Universal with EOL | Product Type | Security Wireless Transmitter | ||
| Technical Information | |||||||||||
| Connectivity Technology | Wireless | ||||||||||
| Physical Characteristics | |||||||||||
| Application/Usage | Sensor | Depth | 0.9" | Form Factor | Bracket Mount | Height | 3.5" | Weight (Approximate) | 1.90 oz | Width | 1.7" |
| Power Description | |||||||||||
| Power Source | Battery | ||||||||||
| Product Information | |||||||||||
| Miscellaneous | |||||||||||
| Weight | 3 lbs |
|---|
