Product Overview

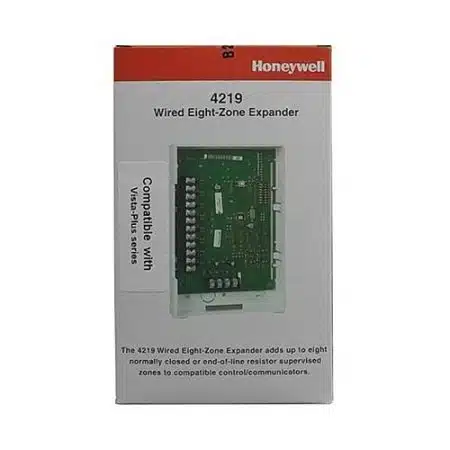

When your installation requirements call for 8 additional hardwired zones for new or existing installations, the 4219 is your answer. The 4219 Wired Zone Expander adds up to 8 EOLR supervised zones which are connected to the control/communicator via the control’s console wiring.

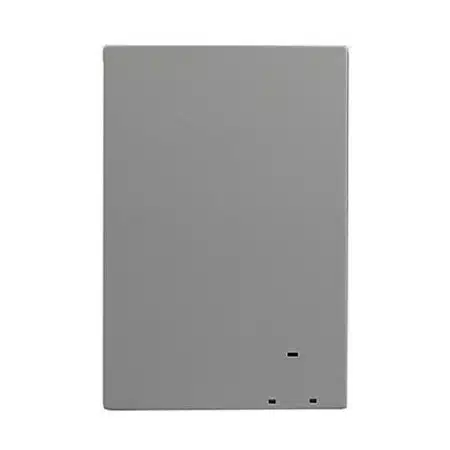

The 4219 is ideal for expanding existing hardwired jobs without changing the control panel. the ability to add multiple zone expanders to gain more hardwired zones offers maximum protection with minimal cost. The 4219 is housed in a white plastic case for wall mounting and can be mounted in Universal Can. If the 4219 is remotely mounted, there are provisions that tamper protect the unit so that it cannot be disconnected from the console wiring without detection by the control.
Main Features
- Adds up to 8 end-of-line supervised zones
- Connection made to the control’s console wires
- Supported on VISTA-20HW
- Compatible controls/communicators VISTA-15P, VISTA-20P, and VISTA-21iP.
- Expand existing security systems easily
- Fits inside universal control cabinet
- Easily wired to control panel
- 8-Zone expansion module
- Current: 35mA
- Limited Warranty: 2 Year
