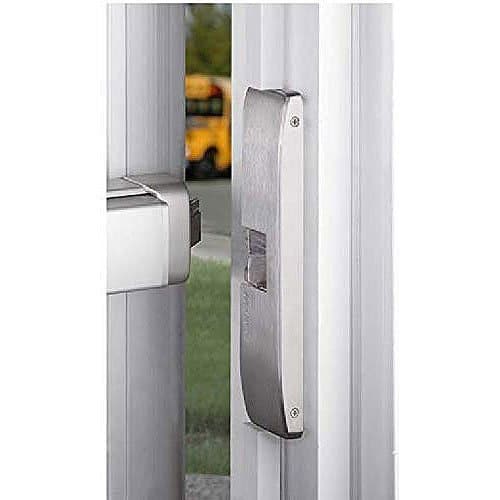

HES 9600-12/24-630-LBM 9600 Series Surface Mounted Electric Strike with Latchbolt Monitor, Windstorm Resistant, Satin Stainless
Installs in metal or wood frames
Wood screws not provided
Separate base and decorative cover for easy
$643.47
Main Features
- Installs in metal or wood frames
- Wood screws not provided
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper-resistant
- Static strength 2,000 lbs.
- Dynamic strength 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Dual-voltage 12 or 24 VDC
| Specifications | |||||||||||||||||||
| Part Number | 9600-12/24-630-LBM | Product Model | 9600-613 | Product Name | 9600-613 Electric Strike | Product Series | 9600 | Product Type | Electric Strike | ||||||||||
| Technical Information | |||||||||||||||||||
| Compatible Door Frame Type | Metal, Wood | Compatible Door Lock Type | Rim Exit | Door Handling | Non Handed | Duty Cycle | 1000000 | Holding Strength | 2000 lb | Security Configuration | Fail Safe, Fail Secure | ||||||||
| Physical Characteristics | |||||||||||||||||||
| Application/Usage | Outdoor | Color | Silver | Faceplate Depth | 0.75" | Faceplate Height | 9" | Faceplate Width | 1.75" | Product Color | Satin Stainless Steel | Product Material | Stainless Steel | Strike Depth | 0.75" | Strike Height | 9" | Strike Width | 1.75" |
| Power Description | |||||||||||||||||||
| Input Current | 250 mA, 450 mA | Input Voltage | 12V DC, 24V DC | ||||||||||||||||
| Warranty | |||||||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Horizontal Adjustment, Internally Mounted Solenoid, Latch Monitoring, Surface Mount | ||||||||||||||
| Weight | 2 lbs |
|---|
