Hanwha XNV-6081R X-Series Plus 2MP IR OutS,
2MP (1920 x 1080) resolution
2.8 ~ 12 mm (4.3x) motorized varifocal lens
High powered IR LEDs with a range of
$1,190.48
Product Overview

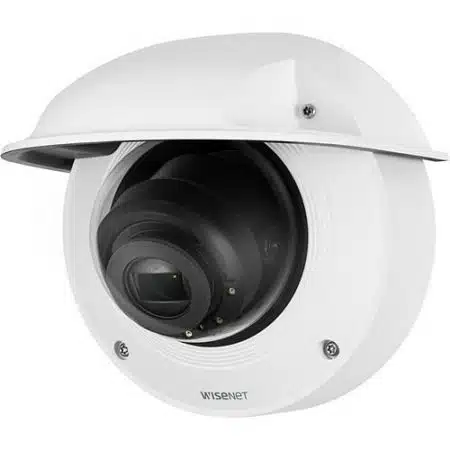

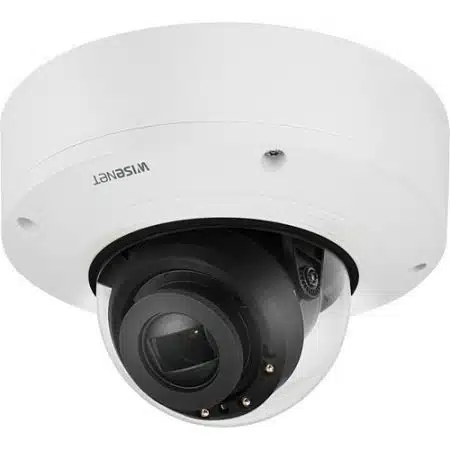

Keep a watchful eye on your property with the white WiseNet X Series XNV-6081R 2MP Outdoor Network Dome Camera with Night Vision from Hanwha Techwin. Featuring a 1/2.8″ 2MP CMOS sensor and a 2.8-12mm motorized varifocal lens, this camera captures video at resolutions up to 1920 x 1080 at 60 fps in a 119.5 to 27.9° field of view. The camera is equipped with IR LEDs for up to 164′ of night vision and uses an automatic IR cut filter to switch from color to B&W for day/night functionality. Image enhancement features include a 150 dB wide dynamic range and automatic white balance. Designed for use in vandal-prone outdoor locations, the XNV-6081R is housed in an IP67- and IK10-rated enclosure. PoE technology is onboard, simplifying installation by enabling you to run just one cable for both data and power.
Main Features
- 2MP (1920 x 1080) resolution
- 2.8 ~ 12 mm (4.3x) motorized varifocal lens
- High powered IR LEDs with a range of 164′
- 60fps all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support, IP67/IP66/IP6K9K, IK10+, NEMA 4X
| Specifications | |||||||||||||||||||
| Part Number | XNV-6081R | NDAA Compliant | Yes | Product Model | XNV-6081R | Product Name | 2MP IR Vandal Dome | Product Series | X | Product Type | Dome Camera | ||||||||
| Technical Information | |||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 2MP | Field of View | H: 119.5°-27.9°, V: 62.8°-15.7°, D: 142.1°-32.0° | HD Recording | Yes | Lens Type | DC Auto Iris, P-iris | Maximum Aperture | F1.4 | Maximum Frame Rate | 60 fps | Minimum Focal Length | 2.8 mm | Night Vision Type | Infrared | Optical Zoom | 4.3x |
| Camera | |||||||||||||||||||
| Night Vision Distance | 164.04 ft | Wide Dynamic Range | Yes | ||||||||||||||||
| Display & Graphics | |||||||||||||||||||
| Color Supported | Color, Monochrome | Maximum Video Resolution | 1920 x 1080 | ||||||||||||||||
| Environmental Conditions | |||||||||||||||||||
| Maximum Operating Temperature | 140°F | Minimum Operating Temperature | -58°F | Operating Humidity | <90% RH | ||||||||||||||
| Exposure | |||||||||||||||||||
| Longest Shutter Speed | 1/12000 Second | Minimum Illumination | 0.015 lux | Shortest Shutter Speed | 2 Second | ||||||||||||||
| Interfaces/Ports | |||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||
| Lens | |||||||||||||||||||
| Focal Length | 2.8-12 mm | Maximum Focal Length | 12 mm | Minimum Aperture | f/3.6 | ||||||||||||||
| Network & Communication | |||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||
| Color | White | Durability | Dustproof, Impact Resistant, Waterproof | Form Factor | Dome | Height | 4.9" | Weight (Approximate) | 3.86 lb | Width | 7.1" | ||||||||
| Power Description | |||||||||||||||||||
| Input Voltage | 12V DC, 24V AC | ||||||||||||||||||
| Product Information | |||||||||||||||||||
| Diameter | 7.09" | Mount Type | Conduit Mount, Pendant Mount | ||||||||||||||||
| Projection Lens | |||||||||||||||||||
| Minimum Focal Length (mm) | 2.8 | ||||||||||||||||||
| Storage | |||||||||||||||||||
| Recording Formats | HD | ||||||||||||||||||
| Video | |||||||||||||||||||
| Maximum Frame Rate (fps) | 30 | ||||||||||||||||||
| Warranty | |||||||||||||||||||
| Limited Warranty | 3 Year | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66, IP67, IP6K9K | Package Contents | 2MP Vandal-Resistant Outdoor IR Network Dome Camera | ||||||||||||
| Weathercap | |||||||||||||||||||
| Ivory Skin | |||||||||||||||||||
| Weight | 4 lbs |
|---|
