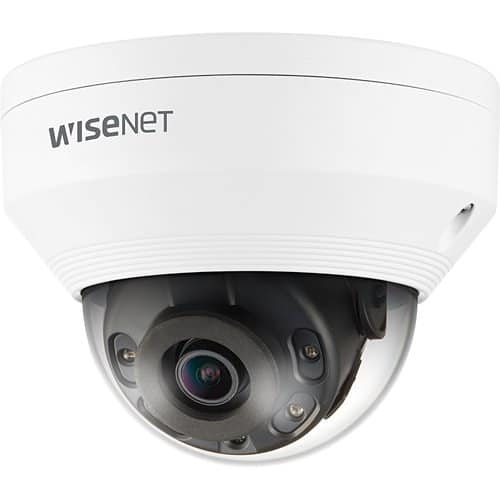

Hanwha QNV-6012R1 Q-Series 2MP IR Vandal Dome Camera, 2.8mm Fixed Lens, 0.03 Lux,
Maximum 2MP (1920 x 1080) resolution
0.03Lux (Color), 0Lux (B/W, IR LED on)
2.8 mm fixed
$361.73
Product Overview
Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices. Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility.
Main Features
- Maximum 2MP (1920 x 1080) resolution
- 0.03Lux (Color), 0Lux (B/W, IR LED on)
- 2.8 mm fixed lens
- Maximum 30fps@2MP all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90/270), LDC support
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IR viewable length 20m
- IP66, IK10, PoE, 12VDC
| Specifications | |||||||||||||||||||||
| MaPart Number | QNV-6012R1 | NDAA Compliant | Yes | Product Model | QNV-6012R1 | Product Name | 2MP IR Vandal Dome Camera | Product Series | Q | Product Type | Network Camera | Weight (Approximate) (g) | 510 | ||||||||
| Technical Information | |||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 2MP | Field of View | H: 113.7 / V: 61.5° / D: 134.5° | HD Recording | Yes | Lens Type | Fixed | Maximum Aperture | f/2 | Maximum Focal Length (mm) | 2.8 | Maximum Frame Rate | 30 fps | Night Vision | Yes | Night Vision Type | Infrared | Power Consumption (PoE) (W) | 7.4 |
| Camera | |||||||||||||||||||||
| Night Vision Distance | 65.62 ft | Night Vision Distance (mm) | 20000 | Wide Dynamic Range | Yes | ||||||||||||||||
| Display & Graphics | |||||||||||||||||||||
| Color Supported | Color | Effective Camera Resolution (Pixel) | 2000000 | Maximum Video Resolution | 1600 x 1200 | Minimum Illumination (lux) | 0 | ||||||||||||||
| Environmental Conditions | |||||||||||||||||||||
| Maximum Operating Temperature | 131°F (55°C) | Maximum Operating Temperature (°F) | 131 | Minimum Operating Temperature | -22°F (-30°C) | Minimum Operating Temperature (°F) | -22 | Operating Humidity | 90% | ||||||||||||
| Exposure | |||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||
| Lens | |||||||||||||||||||||
| Focal Length | 2.8 mm | Lens Included | Yes | Maximum Focal Length | 2.8 mm | ||||||||||||||||
| Network & Communication | |||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||
| Others | |||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||
| Color | White | Color Family | White | Diameter (mm) | 120.3 | Durability | Vandal Resistant | Form Factor | Dome | Product Color | White | Weight (Approximate) | 1.12 lb | ||||||||
| Power Description | |||||||||||||||||||||
| Input Voltage | 12V DC | Input Voltage (V DC) | 12 | ||||||||||||||||||
| Product Information | |||||||||||||||||||||
| Diameter | 4.7" | Mount Type | Box Mount, Ceiling Mount, Corner Mount, Pole Mount, Wall Mount | ||||||||||||||||||
| Projection Lens | |||||||||||||||||||||
| Minimum Focal Length (mm) | 2.8 | ||||||||||||||||||||
| Storage | |||||||||||||||||||||
| Recording Formats | Full HD | Storage Type | Memory Card | ||||||||||||||||||
| Video | |||||||||||||||||||||
| Analog Video Signal Format | CVBS | Maximum Frame Rate (fps) | 30 | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||
| Features | Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Indoor, Outdoor | Ingress Protection Rating | IP66 | ||||||||||||||
| Weight | 2 lbs |
|---|
