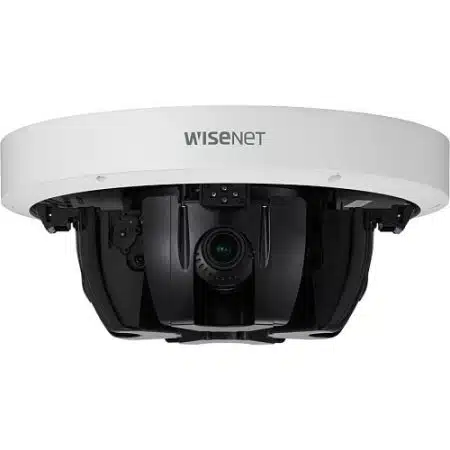

Hanwha PNM-9085RQZ1 x 5MP Multi-Sensor, Multi-Directional PTRZ Camera, 4.13-9.4mm (2.3x) Motorized PTRZ Varifocal Lens, White (Replaces
Motorised PTRZ support
Maximum 30 fpsat5MP(H.265, H.264)
H.265, H.264, MJPEG codec, Multi
$3,479.85
Product Overview
P series multi-sensor cameras are equipped with multiple sensors, allowing them to effectively monitor wide areas with just a single device. By installing multi-sensor cameras, the cost of system installation and maintenance is reduced while successfully monitoring wide areas. P series panoramic and multi-directional cameras are suitable to monitor even the smallest details in a wide area. They are ideal for applications such as warehouse, shopping mall entrances, train stations, parking lots, and more supporting IP66, IK10. Even with backlight, Hanwha’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.
Main Features
- Motorised PTRZ support
- Maximum 30 fpsat5MP(H.265, H.264)
- H.265, H.264, MJPEG codec, Multi streaming
| Specifications | |||||||||||||||||||||||
| Part Number | PNM-9085RQZ1 | Product Model | PNM-9085RQZ1 | Product Name | 5MP x 4CH IR PTRZ Multi-directional Camera | Product Series | P | Product Type | Network Camera | Weight (Approximate) (g) | 5200 | ||||||||||||
| Technical Information | |||||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 20MP | Field of View | H: 87.58°(Wide)~37.34°(Tele) / V: 64.58°(Wide)~28.04°(Tele) / D: 112.46°(Wide)~46.85°(Tele) | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/1.9 | Maximum Focal Length (mm) | 9.4 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 4.13 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 2.3x |
| Camera | |||||||||||||||||||||||
| Night Vision Distance | 98.43 ft | Night Vision Distance (mm) | 30000 | Wide Dynamic Range | Yes | ||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||
| Color Supported | Color | Effective Camera Resolution (Pixel) | 20000000 | Maximum Video Resolution | 1600 x 1200 | Number of Sensors | 4 | ||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||||
| Maximum Operating Temperature | 131°F (55°C) | Maximum Operating Temperature (°F) | 131 | Minimum Operating Temperature | -40°F (-40°C) | Minimum Operating Temperature (°F) | -40 | Operating Humidity | 90% | ||||||||||||||
| Exposure | |||||||||||||||||||||||
| Longest Shutter Speed | 2 Second | Shortest Shutter Speed | 1/12000 Second | ||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||||
| Lens | |||||||||||||||||||||||
| Focal Length | 4.13-9.4 mm | Lens Included | Yes | Maximum Focal Length | 9.4 mm | Minimum Aperture | f/2.67 | ||||||||||||||||
| Network & Communication | |||||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||||
| Others | |||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | White | Color Family | White | Diameter (mm) | 315 | Form Factor | Dome | Product Color | White | Weight (Approximate) | 11.46 lb | ||||||||||||
| Product Information | |||||||||||||||||||||||
| Diameter | 12.4" | Mount Type | Pendant Mount | ||||||||||||||||||||
| Projection Lens | |||||||||||||||||||||||
| Minimum Focal Length (mm) | 4.13 | ||||||||||||||||||||||
| Storage | |||||||||||||||||||||||
| Storage Type | Memory Card | ||||||||||||||||||||||
| Video | |||||||||||||||||||||||
| Maximum Frame Rate (fps) | 30 | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Features | Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Password Protection, SD Card Local Storage, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66 | TAA Compliant | Yes | ||||||||||||||
| Weight | 12 lbs |
|---|
