Home›Intrusion›Alarm Contacts›GRI 3030-T-W 3/8″ Press Fit Recessed Switch Set, 1/2″ Standard Gap, 5W, 175VDC, 0.25A, Open Loop, N/C, and Screw Terminals,

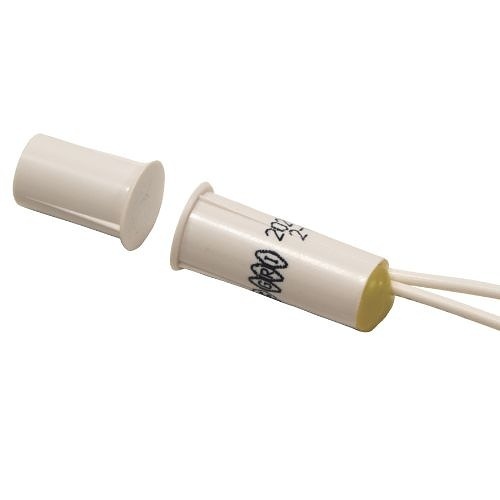

GRI 3030-T-W 3/8" Press Fit Recessed Switch Set, 1/2" Standard Gap, 5W, 175VDC, 0.25A, Open Loop, N/C, and Screw Terminals,

GRI 3030-T-W 3/8″ Press Fit Recessed Switch Set, 1/2″ Standard Gap, 5W, 175VDC, 0.25A, Open Loop, N/C, and Screw Terminals,

GRI’s recessed switches are most versatile for a variety of applications, but the switch and magnet installed, should never form a “T” configuration.
When the application calls for a wide gap switch, using a bare magnet, keep in mind that GRI’s bare magnets are installed with the painted end towards the switch as they are polarity sensitive.
When protecting steel doors, use the GRI PA-75 collars with ourWide gap

MIN ORDER QTY OF 10

$9.53

Buy Now
Add to List

Select a wishlist

Choose a List or Create a new list

Add to List
SKU:3030-T-W
Categories:,

Product Overview

G.R.I.’s 3/8″ recessed press-to-fit contacts can be installed in many different positions to accommodate a variety of applications. The switch and magnet can be mounted end-to-end within an imaginary arc around the switch, or parallel to the switch. When the application calls for a wide gap switch, install the painted end of the bare magnet facing the switch as they are polarity sensitive. The switch and magnet should never form a “T” configuration when installed.

Main Features

  • GRI’s recessed switches are most versatile for a variety of applications, but the switch and magnet installed, should never form a “T” configuration.
  • When the application calls for a wide gap switch, using a bare magnet, keep in mind that GRI’s bare magnets are installed with the painted end towards the switch as they are polarity sensitive.
  • When protecting steel doors, use the GRI PA-75 collars with ourWide gap switch.

Show More
Specifications
Part Number 3030TW Product Model 3030-T Product Name 3030-T Magnetic Contact Product Type Magnetic Contact
Technical Information
Connectivity Technology Wired Contact Configuration N.C. Mounting Type Recessed Mount Standard Gap 0.5"
Physical Characteristics
Color White Product Material Steel
Power Description
Power Source DC
Product Information
Contact Type Open Loop Installation Type Hybrid
Warranty
Limited Warranty Lifetime
Miscellaneous
Additional Information Plated contacts resist sticking or freezing
Recessed magnetic contacts
Hermetically sealed
Screw terminals
Press to fit
Open loop
Weight 1 lbs
