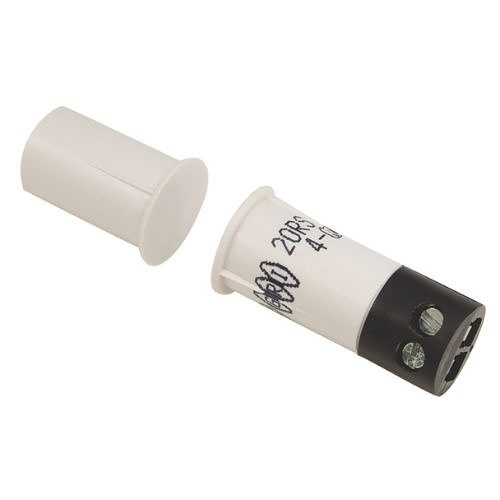

GRI 20RS-T-W 20RS-T Series 3/8″ Short Press Fit Recessed Switch Set, 0.93″ Length, 1/2″ Standard Gap, 10W, 200VDC, 0.50 Amp, Closed Loop, N/O, A,
Standard Lead Length 12″ or Terminal Block
Longer Leads, Zip Cord or Jacketed Cable on Request
Ideal for Thin Framed Doors &
$7.79
Product Overview
The G.R.I. recessed “shortie” switch set is designed for applications where a 3/8″ press tofit set is needed but space limitations will not allow for a full length set to be installed. Withthe 5/8″ 20RS-12, or the .930″ 20RS-T, the installer is able to protect openings thatotherwise would have to be secured with more visible surface mount configurations. Available in regular and extra wide gaps, the 20RS series provides an easy answer to thedifficult, high dollar window problems every installer encounters.
Main Features
- Standard Lead Length 12″ or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors & Windows
- UL and ULC Approved
- 3/8″ Diameter, Press To Fit
- Built-in Resistors & Diodes Available on Request
- Switches or Magnets Available Separately
- Standard Gap 3/4″+
- Extra Wide Gap 1″+
| Specifications | |||||||||
| Part Number | 20RS-T-W | Product Model | 20RS-T-W | Product Name | 20RS-T-W Magnetic Contact | Product Series | 20RS-T | Product Type | Magnetic Contact |
| Technical Information | |||||||||
| Contact Configuration | N.O. | Lead Length | 12" | Mounting Type | Recessed Mount | Recommended Use | Door, Window | Standard Gap | 0.5" |
| Physical Characteristics | |||||||||
| Color | White | Product Color | White | ||||||
| Power Description | |||||||||
| Power Source | DC | ||||||||
| Product Information | |||||||||
| Contact Type | Closed Loop | Diameter | 0.375" | Installation Type | Residential | ||||
| Warranty | |||||||||
| Limited Warranty | Lifetime | ||||||||
| Miscellaneous | |||||||||
| Additional Information | 3/8" Recessed stubby press fit | Compatibility | Ideal For Thin Framed Doors and Windows | Features | 3/8" Diameter, Press To Fit, Built-in Resistors & Diodes Available on Request, Closed Loop, Ideal for Thin Framed Doors & Windows, Longer Leads, Zip Cord or Jacketed Cable on Request, Standard Lead Length 12" or Terminal Block, Switches or Magnets Available Separately, Terminals, UL and ULC Approved | ||||
| 12" #22 AWG leads or screw terminals | |||||||||
| Closed loop | |||||||||
| Hermetically sealed | |||||||||
| Plated contacts resist sticking or freezing | |||||||||
| Weight | 1 lbs |
|---|
