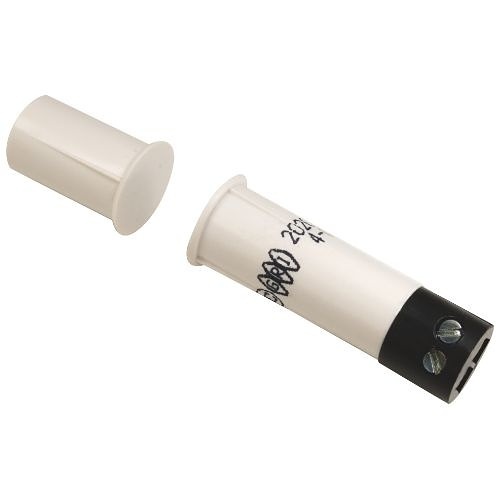

GRI 2020-T-W 3/8″ Press Fit Recessed Switch Set, Standard 1/2″ Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A,
$4.86
GRI’s recessed switches are most versatile for a variety of applications, but the switch and magnet installed, should never form a “T” configuration. When the application calls for a wide gap switch, using a bare magnet, keep in mind that GRI’s bare magnets are installed with the painted end towards the switch as they are polarity sensitive. When protecting steel doors, use the GRI PA-75 collars with our wide gap switch.
- Lifetime Warranty
- Colors: White, Brown, Gray or Black
- Available in closed loop, open loop, SPDT and DPDT
- UL and ULC approved
- Shorter length case
- Softer fill to protect fragile reed
- Standard 12″ leads or terminal block
- Longer leads, zip cord or jacketed cable on request
- Built-in E.O.L. resistors and diodes are available
- Switch or magnet are available separately
- Extra wide gap bare magnets
- Standard gap 1/2″ +
- Wide gap 1″ +
- Extra wide gap 1.5″ +
- Supervisory loops available
Main Features
- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
| Specifications | |||||||||
| General Information | |||||||||
| Part Number | 2020-T-W | Product Model | 2020-T | Product Name | 2020-T Magnetic Contact | Product Series | 2020 | Product Type | Magnetic Contact |
| Technical Information | |||||||||
| Connectivity Technology | Wired | Contact Configuration | N.O. | Mounting Type | Recessed Mount | Standard Gap | 0.5" | Standard Gap (mm) | 12.7 |
| Physical Characteristics | |||||||||
| Color | White | Product Color | White | Product Material | Steel | ||||
| Power Description | |||||||||
| Power Source | DC | ||||||||
| Product Information | |||||||||
| Contact Type | Closed Loop | Installation Type | Hybrid | ||||||
| Warranty | |||||||||
| Limited Warranty | Lifetime | ||||||||
| Miscellaneous | |||||||||
| Additional Information | 3/8" Recessed | ||||||||
| Closed loop | |||||||||
| Press to fit | |||||||||
| 12" leads #22 AWG leads or screw terminals | |||||||||
| Hermetically sealed | |||||||||
| Plated contacts resist sticking or freezing | |||||||||
