- Switches or Magnets are Available Separately
- Self-locking
- UL and ULC Approved

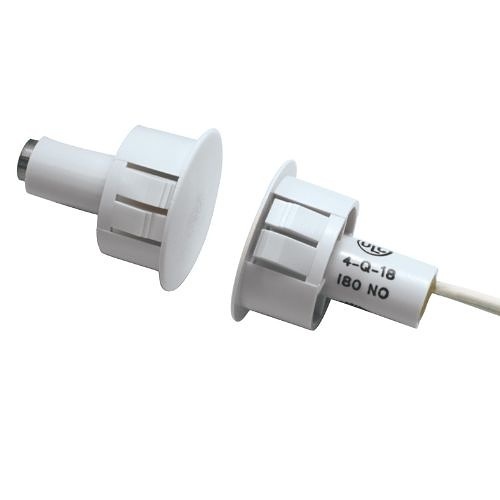

GRI 180-12-G 180 Series 3/4″ Steel Door Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, and U.L. 10C Fire Rated
Switches or Magnets are Available Separately
Self-locking
UL and ULC
SOLD AT A MIN QTY OF TEN
$7.67
| Specifications | |||||||||
| Part Number | 180-12-G | Product Model | 180-12-G | Product Name | 180-12-G Magnetic Contact | Product Series | 180 | Product Type | Magnetic Contact |
| Technical Information | |||||||||
| Connectivity Technology | Wired | Contact Configuration | N.O. | Mounting Type | Steel Door | Standard Gap | 0.5" | Standard Gap (mm) | 12.7 |
| Physical Characteristics | |||||||||
| Color | Gray | Product Color | Gray | Product Material | Steel | ||||
| Power Description | |||||||||
| Power Source | DC | ||||||||
| Product Information | |||||||||
| Contact Type | Closed Loop | Installation Type | Commercial | ||||||
| Warranty | |||||||||
| Limited Warranty | Lifetime | ||||||||
| Miscellaneous | |||||||||
| Additional Information | 3/4" and 1" diameter mounting | ||||||||
| Standard 12" leads or terminals | |||||||||
| Self-Locking | |||||||||
| Solid, One piece design | |||||||||
| Standard 1/2"+ gap on steel | |||||||||
| Wide Gap 1"+ gap on steel | |||||||||
| Weight | 2 lbs |
|---|
