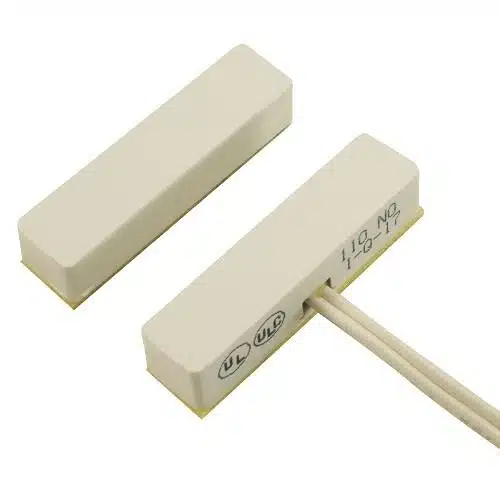

GRI 110-12WG Miniature Surface Mount Switch Set, Wide Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 3M Adhesive Tape,
Lifetime Warranty
UL and ULC approved
Available in closed loop, open loop and SPDT
MIN ORDER QTY OF 10
$5.40
Product Overview
The G.R.I. 100 style switch is one of our most popular miniature surface mount switches. Available in both flanged: 100-12; and without flanges: 110-12; this low profile series is perfect for residential and commercial use where a larger configuration is not appropriate. Available in regular and wide gap, the set incorporates into most decor requirements without being noticeable. The 100-12 comes with mounting screws. Both the 100 and the 110 are furnished with 3M adhesive tape for proper mounting on aluminum, wood or vinyl. Spacers, switch only, magnet only and additional 3M adhesive tape are also available separately. Order P/N 100-TC if molded covers are desired.
Main Features
- Lifetime Warranty
- UL and ULC approved
- Available in closed loop, open loop and SPDT
- Standard gap up to 1″
- Wide gap up to 1 1/4″
- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
| Specifications | |||||||||
| Part Number | 110-12WG-W | Product Model | 110-12WG | Product Name | 110-12WG Magnetic Contact | Product Series | 110 | Product Type | Magnetic Contact |
| Technical Information | |||||||||
| Connectivity Technology | Wired | Mounting Type | Surface Mount | Standard Gap | 1.25" | ||||
| Physical Characteristics | |||||||||
| Color | White | ||||||||
| Power Description | |||||||||
| Power Source | DC | ||||||||
| Product Information | |||||||||
| Contact Type | Closed Loop | Installation Type | Commercial, Residential | ||||||
| Warranty | |||||||||
| Limited Warranty | Lifetime | ||||||||
| Miscellaneous | |||||||||
| Additional Information | Plated contacts resist sticking or freezing | Package Contents | 110-12WG Magnetic Contact | ||||||
| MM-110 rare earth magnet | Mounting Hardware | ||||||||
| Hermetically sealed | Covers | ||||||||
| Self stick,wide gap | |||||||||
| Closed loop | |||||||||
| Weight | 2 lbs |
|---|
