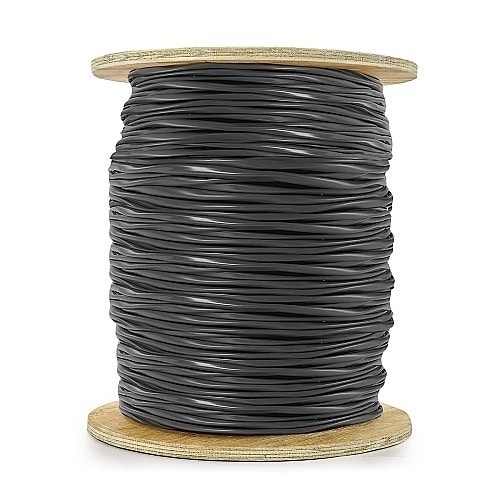

Genesis 50971008 CAT5e Outdoor Cable, 24/4 Solid BC, Unshielded, UTP, Sunlight Resistant, Wet Location, 1000′ (304.8m), Reel,
$361.34
This Genesis® cable features 4 solid 24 AWG copper conductor-pairs, verified Category 5e performance, water-blocking powder, and a water resistant rating. Choose this cable for dependable voice and data wiring.
Main Features
- Solid bare copper conductors
- Rated forWet location outdoor installation and sunlight (UV) resistance
- 1000′ (304.8 m) reel
- Allows you to access all of the networked data, swiftly and securely
- Features Category 5e cable type to better accommodate your precise requirements with maximum productivity
- Water Resistant feature for better usability and increased efficiency
- Fully compatible with network devices
- Black jacket
| Specifications | |||||||||||||||||||||||||||||||
| General Information | |||||||||||||||||||||||||||||||
| Part Number | 50971008 | Packaged Quantity | 1 | Product Model | 50971008 | Product Name | 50971008 - 4-Pair Category 5E Outdoor, Black, 1000 FT. Reel | Product Type | Network Cable | Weight (Approximate) (g) | 9344 | ||||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||||||
| American Wire Gauge | 24AWG | Cable Listing | Sunlight Resistant, Wet Location | Cable Rating | Outdoor | Cable Type | Category 5e | Conductor Count | 4 | Conductor Material | Bare Copper | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 24/4 | Device Supported | Network Device | Impedance | 100 ohms | Jacket Material | PE | Number of Conductors | 8 | Number of Pairs | 4 | Shielding | No | Solid or Stranded | Solid |
| Others | |||||||||||||||||||||||||||||||
| ADI Part Number Replaces | WG-50901008 | Model Number Replaces | 5E+07 | ||||||||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||||||||||
| Cable Length | 1000' | Cable Length (mm) | 304800 | Color | Black | Insulation Material | HDPE | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 20.60 lb | ||||||||||||||||||
| Warranty | |||||||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Minimized Near-End Crosstalk (NEXT), Power-sum Near End Crosstalk (PSNEXT), Stranded, Sunlight Resistant, Water Resistant | Indoor/Outdoor | Outdoor | TAA Compliant | Yes | ||||||||||||||||||||||
| Weight | 20.6 lbs |
|---|
