Genesis 46021104 18/2 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 1000′ (304.8m), REELEX Pull Box,
$211.49
Product Overview
This Genesis® cable features 2 solid 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Solid bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation

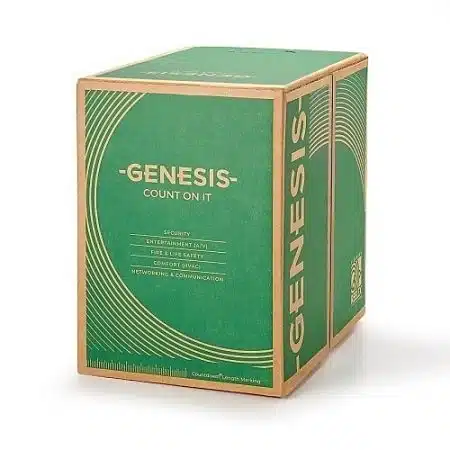

- 1000 ft. (304.8 m) REELEX® pull box
- Red jacket
| Specifications | |||||||||||||||||||||||||
| Part Number | 46021104 | Packaged Quantity | 1 | Product Model | 46021104 | Product Name | 46021104 - 18 AWG 2C Sol Shielded Plenum, Red, 1000 ft. Pull Box | Product Type | Fire Alarm Cable | Weight (Approximate) (g) | 8073.94 | ||||||||||||||
| Technical Information | |||||||||||||||||||||||||
| American Wire Gauge | 18AWG | Cable Listing | CL3P, FPLP, FT6 | Cable Rating | Plenum | Conductor Count | 2 | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 18/2 | Device Supported | Fire Alarm | Jacket Material | LS PVC | Number of Conductors | 2 | Number of Pairs | 1 | Shielding | Yes | Solid or Stranded | Solid |
| Physical Characteristics | |||||||||||||||||||||||||
| Cable Length | 1000' | Cable Length (mm) | 304800 | Color | Red | Insulation Material | LS-PVC | Material | Bare Copper | Package Type | REELEX Pull Box | Weight (Approximate) | 17.80 lb | ||||||||||||
| Warranty | |||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||
| Weight | 18 lbs |
|---|
