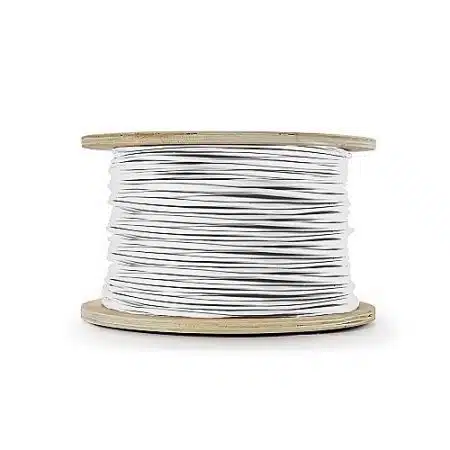

Genesis 43131001 14/2 Solid Riser Fire Alarm Cable, Unshielded, FPLR, CL3R, FT4, Sunlight Resistant, 1000′ (304.8m), Reel,
Solid bare copper conductors
Rated for riser and general purpose indoor installation
Rated for sunlight (UV)
$385.49
Product Overview
This Genesis® cable features 2 solid 14 AWG copper conductors and a riser rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Solid bare copper conductors
- Rated for riser and general purpose indoor installation
- Rated for sunlight (UV) resistance
- 1000 ft. (304.8 m) reel
- White jacket
| Specifications | |||||||||||||||||||||||||||
| Part Number | 43131001 | Packaged Quantity | 1 | Product Model | 43131001 | Product Name | 43131001 Control Cable | Product Type | Fire Alarm Cable | ||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||
| American Wire Gauge | 14AWG | Cable Listing | CL3R, FPLR, FT4, Sunlight Resistant | Cable Rating | Riser | Conductor Count | 2 | Conductor Material | Bare Copper | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 14/2 | Device Supported | Fire Alarm | Jacket Material | PVC | Number of Conductors | 2 | Number of Pairs | 1 | Shielding | No | Solid or Stranded | Solid |
| Physical Characteristics | |||||||||||||||||||||||||||
| Cable Length | 1000' | Color | White | Insulation Material | PP | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 32 lb | ||||||||||||||||
| Warranty | |||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Stranded | Indoor/Outdoor | Indoor | TAA Compliant | Yes | ||||||||||||||||||
| Weight | 40 lbs |
|---|
