Solid bare copper conductors
Rated for riser and general purpose indoor installation
Rated for sunlight (UV)
$82.49

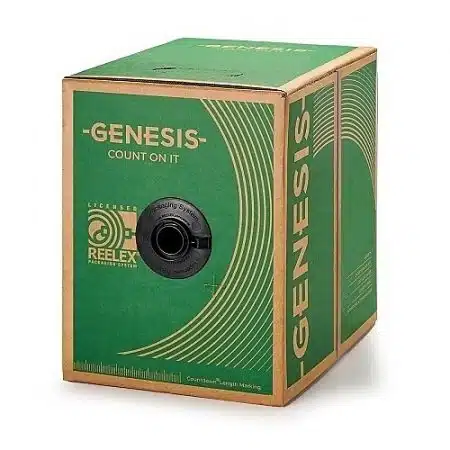

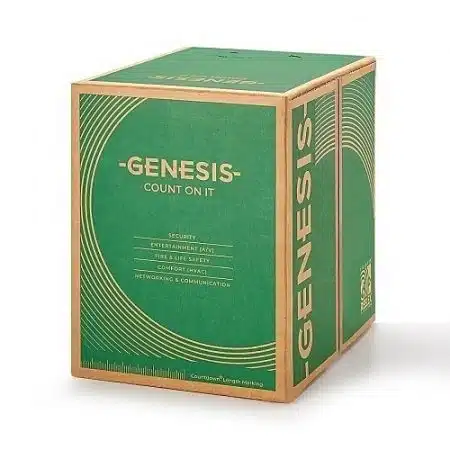

This Genesis® cable features 2 solid 18 AWG copper conductors and a riser rating. Choose this cable for a dependable fire alarm system wiring solution.
| Specifications | |||||||||||||||||||||||||||
| General Information | |||||||||||||||||||||||||||
| Manufacturer Part Number | 43065504 | Packaged Quantity | 1 | Product Model | 43065504 | Product Name | Control Cable | Product Type | Fire Alarm Cable | Weight (Approximate) (g) | 3265.865 | ||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||
| American Wire Gauge | 18AWG | Cable Listing | CL3R, FPLR, FT4, Sunlight Resistant | Cable Rating | Riser | Conductor Count | 2 | Conductor Material | Bare Copper | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 18/2 | Device Supported | Fire Alarm | Jacket Material | PVC | Number of Conductors | 2 | Number of Pairs | 1 | Shielding | No | Solid or Stranded | Solid |
| Physical Characteristics | |||||||||||||||||||||||||||
| Cable Length | 500' | Cable Length (mm) | 152400 | Color | Red | Insulation Material | PP | Material | Bare Copper | Package Type | REELEX Pull Box | Weight (Approximate) | 7.20 lb | ||||||||||||||
| Warranty | |||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Stranded, Sunlight Resistant | Indoor/Outdoor | Indoor | TAA Compliant | Yes | ||||||||||||||||||
| Weight | 7.2 lbs |
|---|
