Genesis 32065512 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 500′ (152.4m), REELEX Pull Box, Natural
Stranded bare copper conductors
Overall foil shield
Rated for plenum, riser, and general purpose indoor
$149.07
Product Overview
Our multi-conductor cables are manufactured in a wide variety of gauge sizes, shielding configurations and jacketing materials including plenum, riser and general purpose. Applications for these cables include control cables (Lutron Systems & Crestron Systems), alarms, intercoms, speakers and other low voltage circuits that are power limited. Plenum Rated Security & Control Cable Part Number: 3206 22 AWG 6 Stranded Conductors Shielded
Main Features
- Stranded bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation

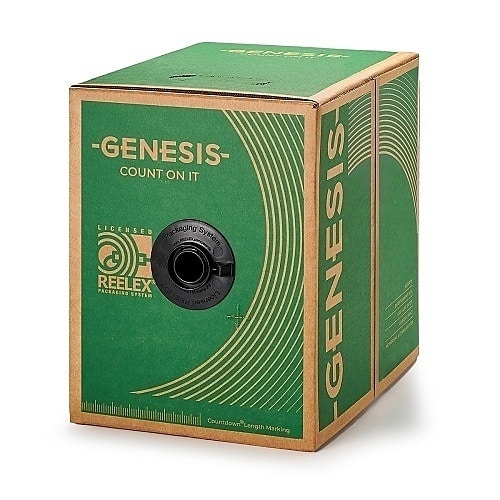

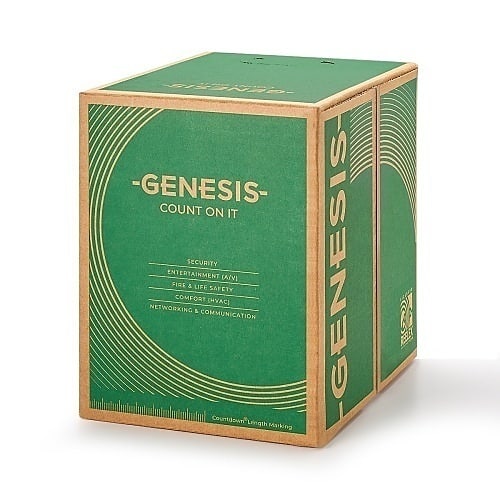

- 500 ft. (152.4 m) REELEX pull box
- Natural (off-white) jacket
- Stranded feature for your convenience and ease of usage
- Control the compatible device with ease
| Specifications | ||||||||||||||||||||||
| Part Number | 32065512 | Packaged Quantity | 1 | Product Model | 32065512 | Product Name | 32065512 Control Cable | Product Type | Access & Security Cable | |||||||||||||
| Technical Information | ||||||||||||||||||||||
| American Wire Gauge | 22AWG | Cable Listing | CL3P, CMP, FPLP, FT6 | Cable Rating | Plenum | Cable Type | Multi-conductor/Multi-pair | Conductor Count | 3 | Conductor Material | Bare Copper | Core/Cladding Diameter | 22/6 | Device Supported | Burglar Alarm, Intercom, Phone, Speaker | Jacket Material | LS PVC | Number of Conductors | 6 | Number of Pairs | 3 | Shielding |
| Physical Characteristics | ||||||||||||||||||||||
| Cable Length | 500' | Cable Length (mm) | 152400 | Color | Natural | Insulation Material | LS-PVC | Material | Bare Copper | Package Type | REELEX Pull Box | |||||||||||
| Warranty | ||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | |||||||||||||||||||||
| Miscellaneous |
| Weight | 2 lbs |
|---|
