Genesis 32025512 22/2 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 500′ (152.4m), REELEX Pull Box, Natural
Stranded bare copper conductors
Overall foil shield
Rated for plenum, riser, and general purpose indoor
$74.99
This Genesis® cable features 2 stranded 22 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general-purpose indoor installation
- Phone device supported for better reliance and optimal performance

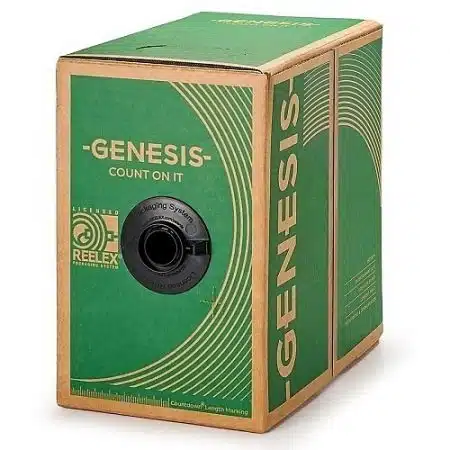

- 500 ft. (152.4 m) REELEX pull box
- Natural (off-white) jacket
| Specifications | |||||||||||||||||||||||||
| General Information | |||||||||||||||||||||||||
| Part Number | 32025512 | Packaged Quantity | 1 | Product Model | 32025512 | Product Name | 32025512 Control Cable | Product Type | Access & Security Cable | Weight (Approximate) (g) | 5034.875 | ||||||||||||||
| Technical Information | |||||||||||||||||||||||||
| American Wire Gauge | 22AWG | Cable Listing | CL3P, CMP, FPLP, FT6 | Cable Rating | Plenum | Cable Type | Multi-conductor/Multi-pair | Conductor Count | 1 | Conductor Material | Bare Copper | Core/Cladding Diameter | 22/2 | Device Supported | Burglar Alarm, Intercom, Phone, Speaker | Jacket Material | LS PVC | Number of Conductors | 2 | Number of Pairs | 1 | Shielding | Yes | Solid or Stranded | Stranded |
| Physical Characteristics | |||||||||||||||||||||||||
| Cable Length | 500' | Cable Length (mm) | 152400 | Color | Natural | Insulation Material | LS-PVC | Material | Bare Copper | Package Type | REELEX Pull Box | Weight (Approximate) | 11.10 lb | ||||||||||||
| Warranty | |||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Stranded | Indoor/Outdoor | Indoor | TAA Compliant | Yes | ||||||||||||||||
| Weight | 11.1 lbs |
|---|
