Genesis 31161012 18/6 Stranded Plenum Cable, Unshielded, CL3P, FPLP, CMP, FT6, 1000′ (304.8m), Reel, Natural
Stranded bare copper conductors
Rated for plenum, riser, and general purpose indoor installation
1000′ (304.8 m)
$509.66
Product Overview
This Genesis® cable features 6 stranded 18 AWG copper conductors and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Rated for plenum, riser, and general purpose indoor installation

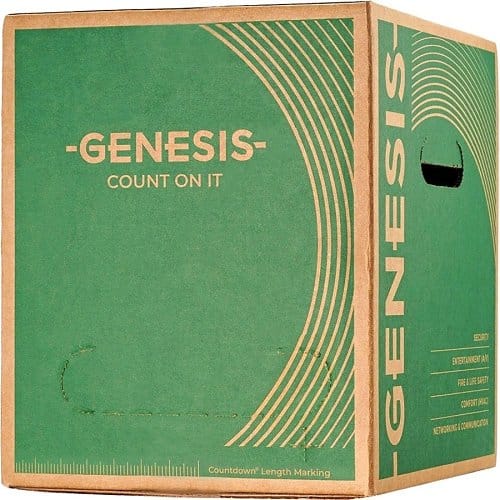

- 1000′ (304.8 m) reel
- Natural (off-white) jacket
| Specifications | |||||||||||||||||||||||||
| Part Number | 31161012 | Packaged Quantity | 1 | Product Model | 31161012 | Product Name | 31161012 Control Cable | Product Type | Access & Security Cable | Weight (Approximate) (g) | 18824.083 | ||||||||||||||
| Technical Information | |||||||||||||||||||||||||
| American Wire Gauge | 18AWG | Cable Listing | CL3P, CMP, FPLP, FT6 | Cable Rating | Plenum | Cable Type | Multi-conductor/Multi-pair | Conductor Count | 3 | Conductor Material | Bare Copper | Core/Cladding Diameter | 18/6 | Device Supported | Burglar Alarm, Phone, Speaker | Jacket Material | LS PVC | Number of Conductors | 6 | Number of Pairs | 3 | Shielding | No | Solid or Stranded | Stranded |
| Physical Characteristics | |||||||||||||||||||||||||
| Cable Length | 1000' | Cable Length (mm) | 304800 | Color | Natural | Insulation Material | LS-PVC | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 41.50 lb | ||||||||||||
| Warranty | |||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||
| Environmental Certification | RoHS | Features | Stranded, Unshielded | Indoor/Outdoor | Indoor | TAA Compliant | Yes | ||||||||||||||||||
| Weight | 41.5 lbs |
|---|
