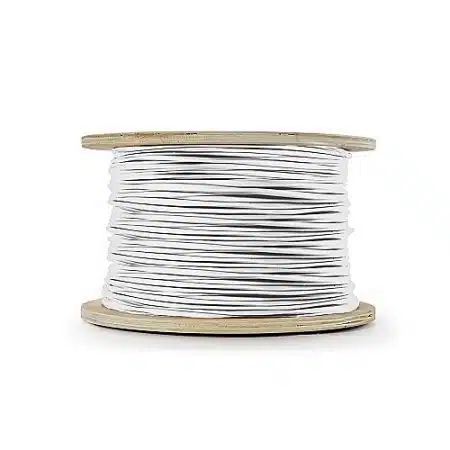

Genesis 31151012 18/4 Stranded Plenum Cable, Unshielded, CL3P, FPLP, CMP, FT6, 1000′ (304.8m), Reel, Natural
Stranded bare copper conductors
Rated for plenum, riser, and general purpose indoor installation
1000′ (304.8 m)
$355.92
Product Overview
This Genesis® cable features 4 stranded 18 AWG copper conductors and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Rated for plenum, riser, and general purpose indoor installation
- 1000′ (304.8 m) reel
- Natural (off-white) jacket
| Specifications | |||||||||||||||||||||||||||
| Part Number | 31151012 | Packaged Quantity | 1 | Product Model | 31151012 | Product Name | 31151012 Control Cable | Product Type | Access & Security Cable | ||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||
| American Wire Gauge | 18AWG | Cable Listing | CL3P, CMP, FPLP, FT6 | Cable Rating | Plenum | Cable Type | Multi-conductor/Multi-pair | Conductor Count | 2 | Conductor Material | Bare Copper | Core/Cladding Diameter | 18/4 | Device Supported | Alarm, Phone | Impedance | 58 ohms | Jacket Material | LS PVC | Number of Conductors | 4 | Number of Pairs | 2 | Shielding | No | Solid or Stranded | Stranded |
| Physical Characteristics | |||||||||||||||||||||||||||
| Cable Length | 1000' | Color | Natural | Insulation Material | LS-PVC | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 28.70 lb | ||||||||||||||||
| Warranty | |||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||
| Weight | 35 lbs |
|---|
