Genesis 21165509 18/6 Unshielded Riser Security Cable, Stranded BC, CL3R, FPLR, CMR, FT4, 500′ (152.4m), Box, Gray (Replaces
Stranded bare copper conductors
Unshielded
Rated for riser
$232.49
Product Overview
This Genesis® cable features 6 stranded 18 AWG copper conductors and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Unshielded
- Rated for riser installations
- Rated for sunlight (UV) resistance

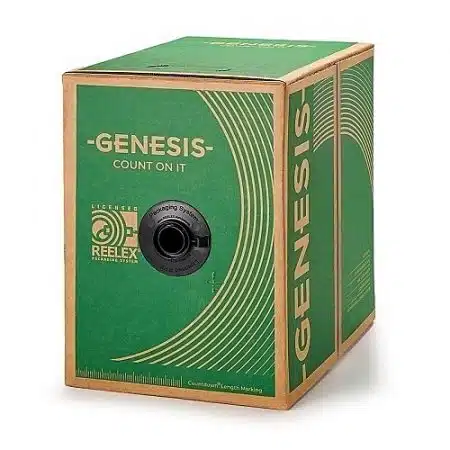

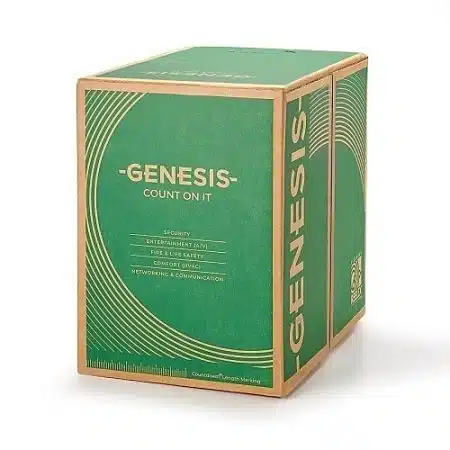

- 500 ft. (152.4 m) REELEX pull box
- Gray jacket
| Specifications | |||||||||||||||||||||||||
| Part Number | 21165509 | Packaged Quantity | 1 | Product Model | 21165509 | Product Name | Genesis 21165509 18/6 Stranded Unshielded Riser Rated Cable, 500' (152.4 m) Pull Box, Gray jacket | Product Type | Access & Security Cable | ||||||||||||||||
| Technical Information | |||||||||||||||||||||||||
| American Wire Gauge | 18AWG | Cable Listing | CL3R, CMR, FPLR, FT4, Sunlight Resistant | Cable Rating | Riser | Cable Type | Multi-conductor/Multi-pair | Conductor Count | 1 | Conductor Material | Bare Copper | Core/Cladding Diameter | 18/6 | Impedance | 67 ohms | Jacket Material | PVC | Number of Conductors | 6 | Number of Pairs | 1 | Shielding | No | Solid or Stranded | Stranded |
| Physical Characteristics | |||||||||||||||||||||||||
| Cable Length | 500' | Color | Gray | Insulation Material | PP | Material | Bare Copper | Package Type | REELEX Pull Box | ||||||||||||||||
| Warranty | |||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||
| Weight | 35 lbs |
|---|
