Genesis 21041101 22/4 Stranded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 1000′ (304.8 m), REELEX Pull Box,
Stranded bare copper conductors
Rated for riser and general purpose indoor installation
Rated for sunlight (UV)
$128.99
Product Overview
This Genesis® cable features 4 stranded 22 AWG copper conductors and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Rated for riser and general purpose indoor installation
- Rated for sunlight (UV) resistance

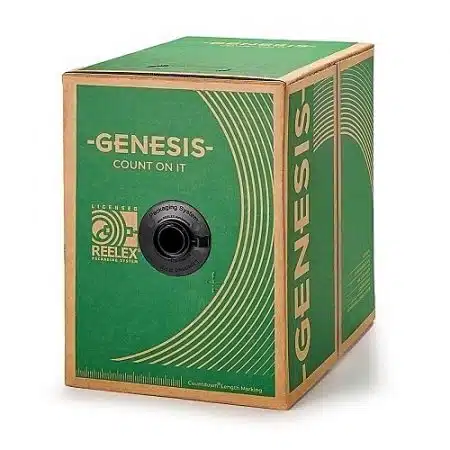

- 1000 ft. (304.8 m) REELEX® pull box
- White jacket
| Specifications | |||||||||||||||||||||||||||||||
| Part Number | 21041101 | Packaged Quantity | 1 | Product Model | 21041101 | Product Name | 21041101 Control Cable | Product Type | Access & Security Cable | ||||||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||||||
| American Wire Gauge | 22AWG | Cable Listing | CL3R, CMR, FPLR, FT4, Sunlight Resistant | Cable Rating | Riser | Cable Type | Multi-conductor/Multi-pair | Conductor Count | 1 | Conductor Material | Bare Copper | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 22/4 | Device Supported | Alarm, Phone | Impedance | 82 ohms | Jacket Material | PVC | Number of Conductors | 4 | Number of Pairs | 1 | Shielding | No | Solid or Stranded | Stranded |
| Physical Characteristics | |||||||||||||||||||||||||||||||
| Cable Length | 1000' | Color | White | Insulation Material | PP | Material | Bare Copper | Package Type | REELEX Pull Box | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||||||
| Weight | 35 lbs |
|---|
