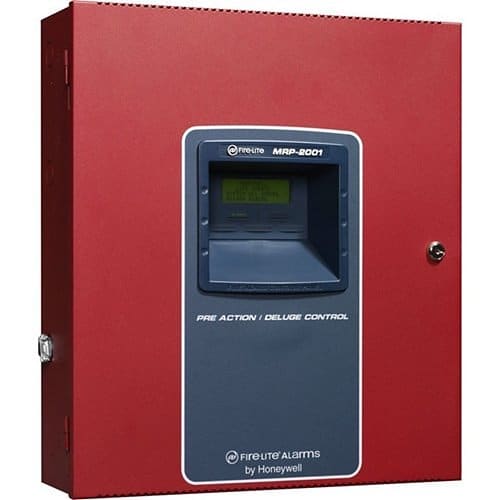

Fire-Lite MRP-2001 Fire Alarm Control Panel, 6-Zone for Single and Dual Hazard Deluge and Preaction,
Resettable and non-resettable output power
Real-time clock or calendar with daylight savings time control
Built-in
$1,502.99
Product Overview
The MRP-2001 is a six-zone FACP for single and dual hazard deluge and preaction applications. The MRP-2001 provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring water-based releasing. The MRP-2001 is compatible with System Sensor’s i3 detectors which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory ‘freeze’ signal when the ambient temperature falls below the detector rating of approximately 45°F (7.22°C). In addition, the control panel is compatible with conventional input devices such as two-wire smoke detectors, four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices. Refer to the FireLite Device Compatibility Document for a complete listing of compatible devices. MRP-2001Features and Benefits 6-zone Style B (Class B) or 6-zone Style D (Class A) with optional modules 4 Programmable Output Circuits Style Y (Class B) or 4 Programmable Output Circuits Style Z (Class A) with optional modules Outputs programmable for Releasing Solenoids Dual hazard operation Adjustable waterflow discharge timer and two soak timers Cross-zone capability Pre-programmed and custom application templates Built-in NAC synchronization for System Sensor, Wheelock, Gentex, Faraday and Amseco devices Built in programmer: Integral 80 character LCD display with backlighting and keypad Annunciator bus supports up to 8 devices, including ANN-80 LCD Remote Annunciator, remote serial or parallel printer gateway, and LED graphic annunciator 7.0 amps total usable current
Main Features
- Resettable and non-resettable output power
- Real-time clock or calendar with daylight savings time control
- Built-in Programmer
| Specifications | |||||||||||
| Part Number | MRP2001 | Product Line | MRP | Product Model | MRP-2001 | Product Name | MRP-2001 Fire Alarm Control Panel | Product Series | MRP | Product Type | Fire Alarm Control Panel |
| Technical Information | |||||||||||
| Maximum Number of Zones Supported | 6 | Number of Events Log | 256 | Number of Standard Zones | 6 | Panel Control Type | Conventional | ||||
| Battery Information | |||||||||||
| Battery Built-in | Yes | ||||||||||
| Display & Graphics | |||||||||||
| Display Type | LCD | ||||||||||
| Physical Characteristics | |||||||||||
| Application/Usage | Commercial | ||||||||||
| Power Description | |||||||||||
| Input Voltage | 120V AC | ||||||||||
| Warranty | |||||||||||
| Limited Warranty | 3 Year | ||||||||||
| Miscellaneous | |||||||||||
| Compatibility | System Sensor i3 Series DetectorsFire-Lite:Smoke DetectorsPull StationsWaterflow DevicesTamper Switches | Features | 24 volt DC operation, Adjustable waterflow discharge timer and two soak timers Cross-zone (double-interlock) capability, ANN-BUS for connection to optional devices 80-character LCD display (backlit), Automatic battery charger with charger supervision, Built-in Programmer, Designed for sprinkler standards NFPA 13, 15 and 16 Dual hazard operation, Disable/Enable control per input zone and output zone, Extensive transient protection, FM Approved, Four programmable Style Y (Class B) output circuits Strobe Synchronization, History log with 256 event storage, Listed to UL Standard 864, 9th edition, Low AC voltage sense, Piezo sounder for alarm, trouble and supervisory, Real-time clock/calendar with daylight savings time control, Resettable and non-resettable output power, Six programmable Style B (Class B) IDCs (Initiating Device Circuit) System Sensor i3 series detectors compatible, Three programmable Form-C relays 7.0 amps total 24 VDC output current | Package Contents | MRP-2001 Fire Alarm Control Panel | ||||||
| Backbox | |||||||||||
| Power Supply | |||||||||||
| Technical Manual | |||||||||||
| Instruction Sheet | |||||||||||
| Weight | 5 lbs |
|---|
