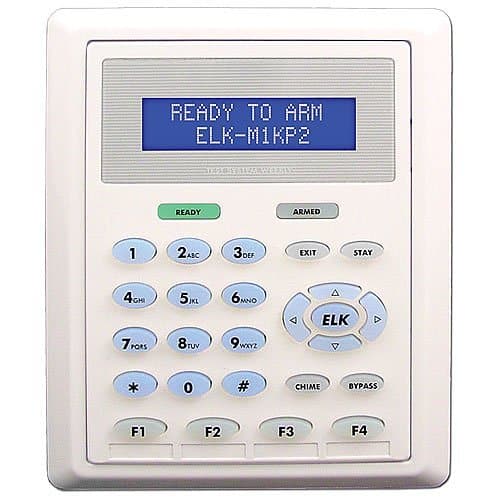

ELK M1KP2 Low Profile LCD Keypad for M1
Blue/white Backlighted Hi-Contrast LCD Display
Four (4) programmable Function Keys
Unique Menu Navigation/Direction
$203.01
Product Overview
The ELK-M1KP2 is a low profile, addressable LCD Keypad for the M1 family of Cross Platform Controls. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. It may also be recess ‘flush’ mounted using with a separately purchased back box kit (ELK-M1BBK2). The M1KP2 is compatible with “external” 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.
Main Features
- Blue/white Backlighted Hi-Contrast LCD Display
- Four (4) programmable Function Keys
- Unique Menu Navigation/Direction Keys
- Operates from the M1/EZ8 RS-485 Data Bus
- Built-in Piezo Sounder with adjustable pitch
- Accepts “External” 26 bit Wiegand Prox Reader (Optional)
- Input for 1 Supervised Zone
- One Programmable “Switched Positive” Voltage Output
- Exit, Stay, Chime, and Bypass Keys
- Surface mounts to a standard 1 or 2 gang electrical box
| Specifications | |||||||||||||||
| Part Number | M1KP2 | Product Line | M1 | Product Model | ELK-M1KP2 | Product Name | ELK-M1KP2 Security Access Keypad | Product Type | Security Keypad | ||||||
| Technical Information | |||||||||||||||
| Device Supported | Control Panel, Sensor, Transceiver | ||||||||||||||
| Physical Characteristics | |||||||||||||||
| Application/Usage | Commercial, Home, Residential | Color | White | Color Family | White | Depth | 1" | Form Factor | Recessed, Surface Mount | Height | 5.5" | Product Color | White | Width | 4.7" |
| Product Information | |||||||||||||||
| Installation Type | Commercial, Residential | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Compatibility | 26 bit Wiegand Compatible Proximity Readers | Environmental Certification | RoHS | Indoor/Outdoor | Indoor | Package Contents | ELK-M1KP2 Security Access Keypad | ||||||||
| 2 x Wire Cable Assembly | |||||||||||||||
| Recess Mount Back Box Kit | |||||||||||||||
| Weight | 3 lbs |
|---|
