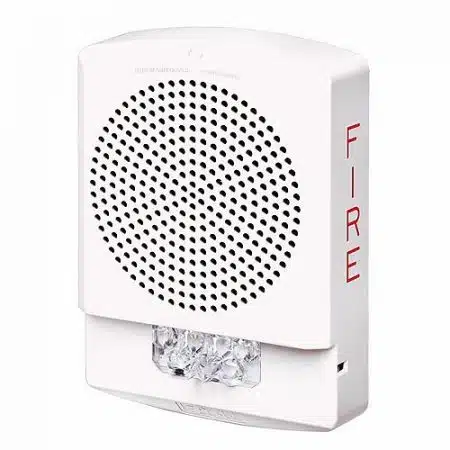

Eaton has developed the Wheelock Eluxa low frequency sounders (ELFHN) and sounder strobes (ELFHS) to meet the National Fire Protection Association (NFPA 72) low frequency sounder requirements for sleeping rooms for both fire alarm and carbon monoxide (CO) signaling. In a single device, the Eluxa low frequency sounders features both low and high candela settings and alarm signals for dual applications – T3 (fire) and T4 (CO) tones. Approvals and synchronization Eaton’s Eluxa strobes meet the 20-millisecond light pulse duration requirements of the 2016 edition of NFPA 72. By meeting this latest requirement, xenon and LED devices can now be in the same field of view. The Eluxa notification appliances are listed under UL Standards 1971, 1638, and 464 and under CAN/ULC-S525 and CAN/ULC-S526. The appliances are Restriction of Hazardous Substances (RoHS) compliant and contain no mercury or other hazardous substances. In addition, the Eluxa product line has been UL/ULC listed as compatible with all Fire Alarm Control Panels (FACP) and accessories that have been determined to be compatible with Exceder LED3 and Wheelock RSS strobe-based products including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH and Z Series. The listing also includes the ability to install the Eluxa strobes in the same notification zone and field of view with any Wheelock RSS strobe and Exceder LED3 models.
Main Features
- Meets NFPA 72 fire and CO low frequency sounder codes for sleeping rooms in a single device
- 3 horn patterns: Continuous, T3, and T3/T4; Fire and CO signaling in 1 device
- Energy efficient: LED technology provides industry’s lowest current draw
- Low-profile design: Smallest footprint with sleek, modern aesthetics
- Special lettering available: ALERT, CO, no lettering
- Field selectable candela settings: 110, 177 cd
