DynaLock 2511 2500 Series 650 lb Mini-Mag Single Electromagnetic
Holding Force – 650 lbs holding force provides for effective traffic control.
4 Operating Voltages
Low Power Consumption conserves energy, reduces operating cost, and extends battery backup
$362.09
Product Overview

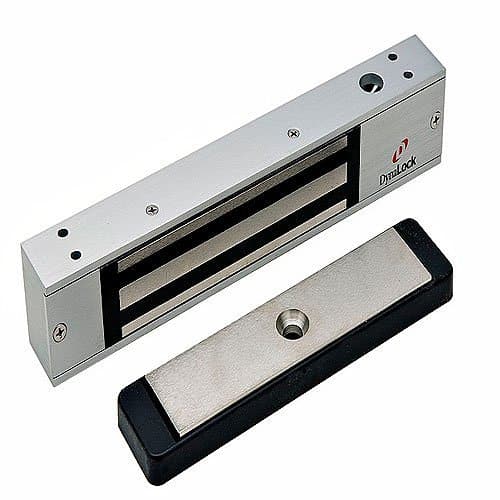

Each 2500 Series Electromagnetic Lock is comprised of 3 basic components: a lock housing, an electromagnetic coil, and an armature. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts. Single and double door models are available as well as the 2585 Series, which has a shorter housing. At only 81 /2” long, the 2585 “Bantam” the lock is perfect for installations where space is limited. All locks are designed for ease of use and built in the USA to last a lifetime.
Main Features
- Holding Force – 650 lbs holding force provides for effective traffic control.
- 4 Operating Voltages
- Low Power Consumption conserves energy, reduces operating cost, and extends battery backup time
- A Totally Plated Coil and armature provides protection against corrosion
- No Residual Magnetism – The lock releases without delay when de-energized
- Built-In Spike Suppression protects other solid-state components
| Specifications | |||||||||||||||
| Part Number | 2511 | Product Model | 2511 | Product Name | 2511 Magnetic Lock | Product Series | 2500 | Product Type | Magnetic Lock | Weight (Approximate) (g) | 1814.4 | ||||
| Technical Information | |||||||||||||||
| Door Supported | Single Door | ||||||||||||||
| Physical Characteristics | |||||||||||||||
| Color | Silver | Lock Depth | 1.25" | Lock Depth (mm) | 31.75 | Lock Height | 1.75" | Lock Height (mm) | 44.45 | Lock Width | 10.5" | Lock Width (mm) | 266.7 | Weight (Approximate) | 4 lb |
| Product Information | |||||||||||||||
| Finishing | Satin Aluminum | Holding Force | 650 lb | ||||||||||||
| Warranty | |||||||||||||||
| Limited Warranty | Lifetime | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Additional Information | Built-In spike suppression | Features | Low Power Consumption, No Residual Magnetism, Spike Suppression | ||||||||||||
| Low power consumption | |||||||||||||||
| Single outswinging door | |||||||||||||||
| No residual magnetism | |||||||||||||||
| Holding Force: 650 lbs | |||||||||||||||
| 4 Operating voltages | |||||||||||||||
| A totally plated coil | |||||||||||||||
| Narrow back set | |||||||||||||||
| Weight | 5 lbs |
|---|
