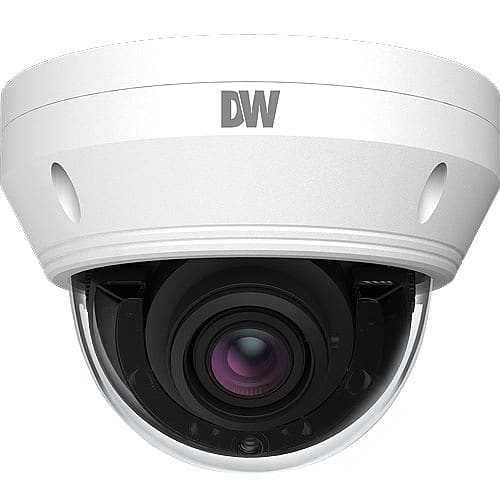

Digital Watchdog DWC-MV95WIATW MEGApix 5MP IR Vandal Dome IP Camera, 2.8-12mm Lens, White
5MP 1/2.7†image sensor at real-time 30 fps
2.8~12 mm vari-focal lens with motorized zoom and auto-focus
True Wide Dynamic Range
$568.49
Product Overview
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Smart IR™
Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Main Features
- 5MP 1/2.7” image sensor at real-time 30 fps
- 2.8~12 mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
| Specifications | |||||||||||||||||||||
| Part Number | DWC-MV95WIATW | NDAA Compliant | Yes | Product Line | MEGApix | Product Model | DWC-MV95WIATW | Product Name | 5MP Vandal Dome IP Camera | Product Type | Network Camera | ||||||||||
| Technical Information | |||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 5MP | Field of View | 95.1° ~ 30° | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/1.4 | Maximum Frame Rate | 60 fps | Minimum Focal Length | 2.8 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 4.3x |
| Camera | |||||||||||||||||||||
| Night Vision Distance | 164' | Wide Dynamic Range | Yes | ||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 2592 x 1944 | ||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||
| Maximum Operating Temperature | 60°F (15.6°C) | Minimum Operating Temperature | -22°F (-30°C) | Operating Humidity | 95% | ||||||||||||||||
| Exposure | |||||||||||||||||||||
| Longest Shutter Speed | 1/30 Second | Shortest Shutter Speed | 1/100000 Second | ||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||
| Lens | |||||||||||||||||||||
| Focal Length | 2.8-12 mm | Lens Included | Yes | Maximum Focal Length | 12 mm | ||||||||||||||||
| Network & Communication | |||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||
| Color | White | Color Family | White | Durability | Dust Resistant, Impact Resistant, Waterproof, Weather Resistant | Form Factor | Dome | Height | 5.4" | Product Color | White | Weight (Approximate) | 1.98 lb | Width | 3.9" | ||||||
| Power Description | |||||||||||||||||||||
| Input Voltage | 12V DC | ||||||||||||||||||||
| Product Information | |||||||||||||||||||||
| Mount Type | Ceiling Mount, Junction Box Mount, Wall Mount | ||||||||||||||||||||
| Projection Lens | |||||||||||||||||||||
| Minimum Focal Length (mm) | 2.8 | ||||||||||||||||||||
| Storage | |||||||||||||||||||||
| Storage Type | Memory Card | ||||||||||||||||||||
| Video | |||||||||||||||||||||
| Analog Video Signal Format | CVBS | ||||||||||||||||||||
| Warranty | |||||||||||||||||||||
| Limited Warranty | 5 years | ||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Cross Line Detection, Day/Night, Motion Detection, SD Card Local Storage, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP67 | ||||||||||
| Weight | 3 lbs |
|---|
