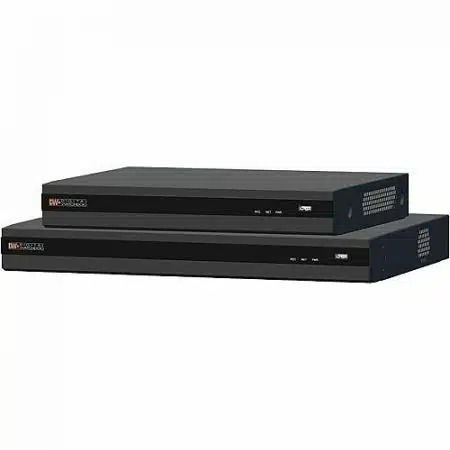

Digital Watchdog DW-VA1G48 VMAX A1 G4 Universal HD Over Coax 8-Ch DVR, No HDD (Replaces DW-VA1P81T)
Universal HD over Coax DVR records HD-Analog, HD-TVI and standard coax up to 4K resolution
Advanced H.265, H.264 Linux embedded DVR
8-channels, 240 fps real-time 30 fps
$565.49
Product Overview
PathFinder™Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.
Status MonitoringA real-time graphical representation of all system connections. Receive connection alerts via email or text.
Group RecordingDesignate a group of cameras to respond to an alert from one camera.
Channel SwapSwap a camera’s channel assignment without changing the cable connections.
C3™ CMSC3™ CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.
Real-Time Streaming Protocol (RTSP)RTSP provides a live video stream for live streaming applications between DW VMAX® G4 recorders and third-party software applications. RTSP streams offer a secondary backup location for recorded video and smart home integration, an alternative for ONVIF integration and a way to broadcast a stream to live streaming services, such as CCTV live monitoring in animal sanctuaries and public cameras.
Main Features
- Universal HD over Coax DVR records HD-Analog, HD-TVI and standard coax up to 4K resolution
- Advanced H.265, H.264 Linux embedded DVR
- 8-channels, 240 fps real-time 30 fps recording
- Up to 4K recording resolution at 56fps (7fps per channel)
- PathFinder™ easy remote connection
- Remote management with C3™ CMS
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iOS® and Android® devices
- OSD and PTZ control via coax (UTC)
| Specifications | |||||||||||||
| Part Number | DWVA1G48 | Product Line | VMAX A1 G4 | Product Model | DW-VA1G48 | Product Name | Universal HD over Coax Digital Video Recorder | Product Type | Video Surveillance Station | ||||
| Technical Information | |||||||||||||
| Connectivity Technology | Wired | HD Recording | Yes | Maximum Frame Rate | 240 fps | Power Consumption | 48W | Storage Capacity | No HDD | System Components | Digital Video Recorder | Total Number of Channels | 8 |
| Interfaces/Ports | |||||||||||||
| Composite Video Out | Yes | Number of VGA Out | 1 | Total Number of Audio In Ports | 8 | Total Number of Audio Out Ports | 1 | USB | Yes | ||||
| Network & Communication | |||||||||||||
| Ethernet | Yes | Remote Management | Yes | ||||||||||
| Physical Characteristics | |||||||||||||
| Depth | 10.6" | Height | 1.8" | Width | 15" | ||||||||
| Storage | |||||||||||||
| Recording Formats | 4K | ||||||||||||
| Video | |||||||||||||
| Maximum Resolution | 4K | ||||||||||||
| Warranty | |||||||||||||
| Limited Warranty | 5 Year | ||||||||||||
| Miscellaneous | |||||||||||||
| Environmental Certification | RoHS, WEEE | Environmentally Friendly | Yes | TAA Compliant | Yes | ||||||||
| Weight | 10 lbs |
|---|
