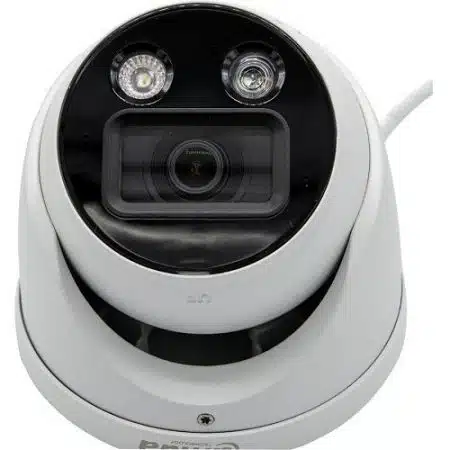

Dahua N43BU83 Lite-Series 4MP IR Turret Camera, 3.6mm Fixed Lens,
1/2.7-” 4MP Progressive-scan CMOS Sensor
Triple-stream Encoding
AI Coding, Smart H.265+, and Smart H.264+ Video
$227.99
Product Overview
The Dahua 4MP Three-in-One Camera (TiOC) offers multiple features working in tandem to assist with deterrence and low-light detection while delivering high-resolution video images. The camera also features Perimeter Protection and Smart Motion Detection that offer accurate analytics.
The camera is ideal for a host of diverse applications — Enhanced Starlight Technology, True Wide Dynamic Range, and Smart Dual illuminators allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Main Features
- 1/2.7-” 4MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+, and Smart H.264+ Video Compression
- 4MP (2688 x 1520) at 30 fps, 3.6mm Fixed Lens
- Analytics+ Functions – Perimeter Protection, Smart Motion Detection+
- Two (2) Built-in Microphones and a Built-in Speaker
- Voice Catcher Technology Captures Clear Audio at a Distance
- Dual Smart Illumination – IR and White Light
- Active Alarm with Red/Blue Lights and Siren or Voice Prompt
- Enhanced Starlight Technology for Low-light Applications
| Specifications | |||||||||||||||||||||||
| Part Number | N43BU83 | Product Line | TiOC | Product Model | N43BU83 | Product Name | 4MP TiOC Network Eyeball Camera 3.6mm | Product Series | Lite | Product Type | Network Camera | Weight (Approximate) (g) | 745 | ||||||||||
| Technical Information | |||||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 4MP | Field of View | Horizontal: 82° Vertical: 44° Diagonal: 96° | HD Recording | Yes | Lens Mount Type | M12 Mount | Lens Type | Fixed | Maximum Aperture | f/1 | Maximum Focal Length (mm) | 3.6 | Maximum Frame Rate | 30 fps | Night Vision | Yes | Night Vision Type | Infrared/Color | Number of IR LEDs | 2 |
| Camera | |||||||||||||||||||||||
| Night Vision Distance | 98.43 ft | Night Vision Distance (mm) | 30000 | Wide Dynamic Range | Yes | ||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||
| Color Supported | Color | Effective Camera Resolution (Pixel) | 4000000 | Maximum Video Resolution | 2688 x 1520 | ||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||||
| Maximum Operating Temperature | 140°F (60°C) | Maximum Operating Temperature (°F) | 140 | Minimum Operating Temperature | -40°F (-40°C) | Minimum Operating Temperature (°F) | -40 | Operating Humidity | 95% | ||||||||||||||
| Exposure | |||||||||||||||||||||||
| Longest Shutter Speed | 1/3 Second | Shortest Shutter Speed | 1/100000 Second | ||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||||
| Lens | |||||||||||||||||||||||
| Focal Length | 3.6 mm | Lens Included | Yes | Maximum Focal Length | 3.6 mm | ||||||||||||||||||
| Network & Communication | |||||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | White | Diameter (mm) | 110.9 | Durability | Dust Resistant, Water Resistant | Form Factor | Eyeball | Weight (Approximate) | 1.64 lb | ||||||||||||||
| Power Description | |||||||||||||||||||||||
| Input Voltage | 12V DC | Input Voltage (V DC) | 12 | ||||||||||||||||||||
| Product Information | |||||||||||||||||||||||
| Diameter | 4.4" | Mount Type | Backbox Mount, Ceiling Mount, Pendant Mount, Wall Mount | ||||||||||||||||||||
| Projection Lens | |||||||||||||||||||||||
| Minimum Focal Length (mm) | 3.6 | ||||||||||||||||||||||
| Storage | |||||||||||||||||||||||
| Storage Type | Memory Card | ||||||||||||||||||||||
| Video | |||||||||||||||||||||||
| Maximum Frame Rate (fps) | 30 | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Features | 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Built-in Speaker, Day/Night, Highlight Compensation (HLC), Ingress Protection, Motion Detection, Wide Dynamic Range | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP67 | ||||||||||||||||||
| Weight | 3 lbs |
|---|
