Cypress SPX-1300 Suprex Wired Wiegand Reader-Extender, 2-Wire RS-485, Twisted
Extends distance between panel to reader and its associated I/O connections, up to 10,000′ over over 2-wire RS-485 connection
Supports 1 reader (choose SPX-7500 for use with up to 8 readers when used with EXP Expansion
$788.99
Product Overview

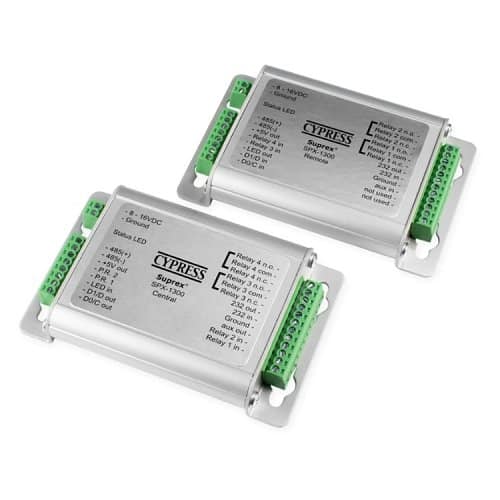

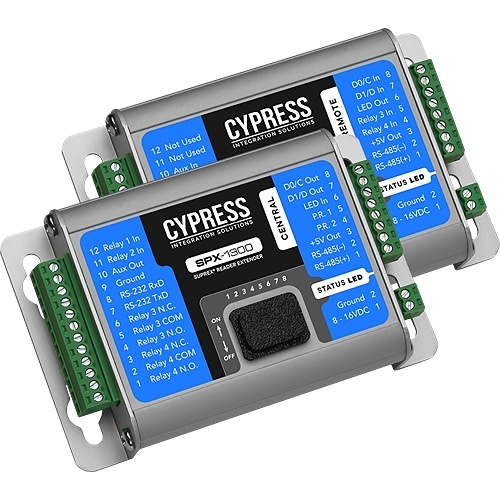

SPX-1300: Cypress Suprex® Reader-Extender, 2-wire RS-485, single reader. Connect readers to access controllers without Wiegand distance limits, using RS-485. Typical range is 10,000 ft. (3048 m), depending on environmental conditions. The Suprex is a pair of units; a Central Unit and a Remote unit. The Central Unit connects to the access control panel, and the Remote Unit connects to the Reader. The 2-wire RS-485 connection runs between the Central and Remote units.
The SPX-1300 is suitable for a connection between a single reader and access controller. An expandable RS-485 Suprex is also available, which can accommodate up to 8 readers when used with Cypress EXP expansion modules. Other Suprex models are available to link readers with an access control panel over Ethernet, Fiber Optic, or Wireless connections.
Includes
- Remote (reader/door) unit
- Central (panel) unit
Main Features
- Extends distance between panel to reader and its associated I/O connections, up to 10,000′ over over 2-wire RS-485 connection
- Supports 1 reader (choose SPX-7500 for use with up to 8 readers when used with EXP Expansion Pairs)
- Supports LED and REX switch I/O
- Onboard relays for door strike / gate activation
- Supports 1 reader (for multi-reader applications, use SPX-7500)
- RS-485 (twisted pair)
- Fully Supervised
- Reader Interface
- Rugged Aluminum housing
| Specifications | |||||||||||||||
| Part Number | SPX-1300 | Product Line | Suprex | Product Model | SPX-1300 | Product Name | Suprex SPX-1300 Door Expansion Module | Product Type | Reader Expansion Module | ||||||
| Technical Information | |||||||||||||||
| Device Supported | Coaxial Cabling, Door Strikes, Elevators, Tamper Alarms | ||||||||||||||
| Physical Characteristics | |||||||||||||||
| Depth | 0.8" | Depth (mm) | 19.05 | Height | 3.5" | Height (mm) | 88.9 | Material | Aluminum | Product Material | Aluminum | Width | 2.8" | Width (mm) | 69.85 |
| Miscellaneous | |||||||||||||||
| Additional Information | Power input: 8 to 16 VDC | Environmental Certification | RoHS | Environmentally Friendly | Yes | Package Contents | Suprex SPX-1300 Door Expansion Module | ||||||||
| Power out put: 5 VDC | Convenient Removable Connectors | ||||||||||||||
| Weight | 2 lbs |
|---|
