Product Overview

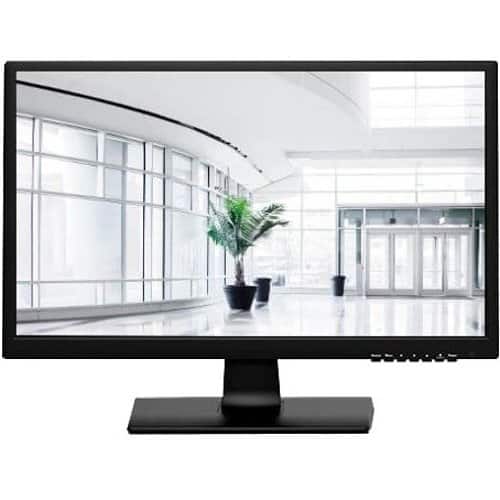

This professional-grade widescreen LED 21.5″ color monitor offers HDMI, VGA and BNC inputs. With the BNC looping output, its versatility will allow it to work for any application. Boasting 16.7 million colors and FHD resolution, this monitor will make your video come to life.
Main Features
- 21.5″ Diagonal Viewing Size
- 1920x1080P Full HD Resolution
- VGA, BNC and HDMI Inputs
- IPS Technology, 178° Viewing Angle
- Source Auto Detection
- Quick Touch Scalability 16:9/4:3
- Includes Audio, VGA, HDMI and Power Cables
- 30-Month Warranty
| Specifications | |||||||||||||||||||||||||||||||
| Part Number | 0E-22LED2 | NDAA Compliant | Yes | Product Model | 0E-22LED2 | Product Name | Full HD Pro-grade LED Color Monitor | Product Type | HD Monitor | Weight (Approximate) (g) | 3129.8 | ||||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||||||
| Panel Technology | In-plane Switching (IPS) Technology | Pixel Pitch (mm) | 0.248 | Response Time | 5 ms GTG | Screen Size Class | 22" | Screen Size Class (mm) | 558.8 | Viewable Screen Size | 21.5" | Viewable Screen Size (mm) | 546.1 | ||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||
| Number of Speakers | 2 | Speakers | Yes | Weight with Stand (Approximate) (g) | 3401.943 | ||||||||||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||||||||||
| Backlight Technology | LED | Color Supported | 16.7 Million Colors | Number of Screens | 1 | Pixel Pitch | 9.8 mil | Response Time (Second) | 0.005 | Screen Mode | Full HD | ||||||||||||||||||||
| Energy & Performance | |||||||||||||||||||||||||||||||
| Operating Power Consumption | 20W | Operating Power Consumption (W) | 20 | ||||||||||||||||||||||||||||
| Image | |||||||||||||||||||||||||||||||
| Aspect Ratio | 16:09 | ||||||||||||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||||||||||
| HDMI | Yes | VGA | Yes | ||||||||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||||||||||
| Depth | 2" | Depth (mm) | 50.8 | Depth with Stand | 5.87" | Depth with Stand (mm) | 149.098 | Height | 12.3" | Height (mm) | 311.15 | Height with Stand | 14.58" | Height with Stand (mm) | 370.332 | VESA Mount Compatible | Yes | VESA Mount Standard | 100 x 100 | Weight (Approximate) | 6.90 lb | Weight with Stand (Approximate) | 7.50 lb | Width | 20" | Width (mm) | 506.984 | Width with Stand | 19.96" | Width with Stand (mm) | 506.984 |
| Product Information | |||||||||||||||||||||||||||||||
| Display Screen Type | LED | ||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||
| Brightness | 250 Nit | Brightness (Nit) | 250 | Maximum Resolution | 1920 x 1080 | Native Contrast Ratio | 1,000:1 | Standard Refresh Rate | 60 Hz | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||||||||||
| Limited Warranty | 30 Months | ||||||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | IPS Technology, Source Auto Detection | Package Contents | Full HD Pro-grade LED Color Monitor Power cable HDMI cable VGA cable Audio cable IR Remote Batteries Hinge cover Screws Base of stand Stand support User manuals | TAA Compliant | No | ||||||||||||||||||||||
| Weight | 6.9 lbs |
|---|
