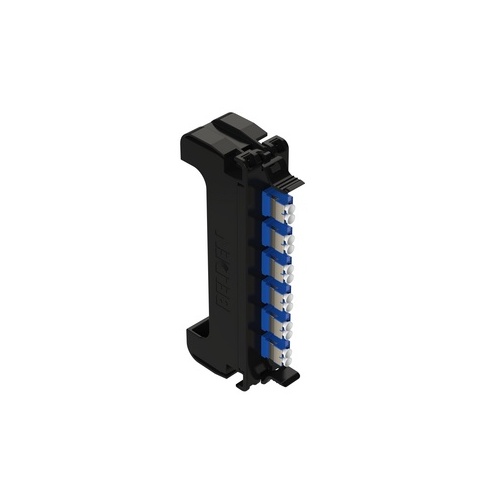

Belden FFSX06LD FiberExpress ECX 6-Port Frame Singlemode LC Duplex Patch Panel, OS2,
Suitable Applications: FiberExpress Solutions, Backbone, Tele communications Room, Main Distribution Room, Data Centers
Related Parts: FX ECX Panels, FX Pigtails, FX Brilliance
Front Connection:
$67.59
Product Overview
FX ECX Frame Singlemode LC Duplex. Available in several port counts.
Main Features
- Suitable Applications: FiberExpress Solutions, Backbone, Tele communications Room, Main Distribution Room, Data Centers
- Related Parts: FX ECX Panels, FX Pigtails, FX Brilliance
- Front Connection: Static
- Suitability – Indoor: Yes
| Specifications | |||||||||||||||||
| Part Number | FFSX06LD | Product Name | FFSX06LD Faceplates and Panels - FX ECX Frame | Product Type | Network Patch Panel | Weight (Approximate) (g) | 91 | ||||||||||
| Technical Information | |||||||||||||||||
| Material | Ceramic, Metal, Plastic, Zirconia | ||||||||||||||||
| Interfaces/Ports | |||||||||||||||||
| LC Port Type | Duplex | Number of LC Ports | 6 | Total Number of Ports | 6 | ||||||||||||
| Physical Characteristics | |||||||||||||||||
| Color | Blue | Height | 1.3" | Height (mm) | 33.02 | Material | Ceramic, Metal, Plastic, Zirconia | Product Color | Black, Blue | Product Material | Ceramic, Metal, Plastic, Zirconia | Weight (Approximate) | 3.21 oz | Width | 6.3" | Width (mm) | 161.036 |
| Product Information | |||||||||||||||||
| Length | 1.4" | Length (mm) | 35.306 | ||||||||||||||
| Miscellaneous | |||||||||||||||||
| Environmental Certification | China RoHS, EU RoHS, EuP, RoHS | Environmentally Friendly | Yes | ||||||||||||||
| Weight | 3 lbs |
|---|
