Product Overview
Our Sonic Vortex technology generates rich, deep bass and effortless clarity from what most people would call a ‘back box’, but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.
Main Features
- The 2-way In-ceiling speakers provide the finest sound coverage
- Uproar the bass as loud as youWant with 120W RMS power without any blaring
- Listen to deep lows and euphoric highs with a frequency range of sound from 38 Hz-22 kHz
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Grille: Magnetic Bezelless; White – Paintable

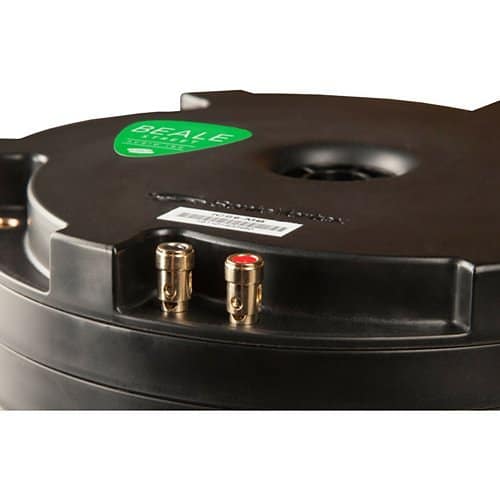

- Connector Type: Gold Spring Push Terminal
- Optional Pre-construction Bracket: EZBracket Size: F
- 8″ Carbon Fiber Woofer
- 1″ Titanium Dome Tweeter
- Butyl Rubber Surround
| Specifications | |||||||||||||||||||||||||||||
| Part Number | IC8-BB | Product Model | IC8-BB | Product Name | IC8-BB Speaker | Product Type | Speaker | ||||||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||||
| Crossover Type | 2-way | Impedance | 8 ohms | Impedance (Ohm) | 8 | Maximum Frequency Response (Hz) | 22000 | Minimum Frequency Response (Hz) | 38 | Sensitivity | 90 dB | Sensitivity (dB) | 90 | Speaker Size | 8" | Tweeter Driver Material | Titanium | Tweeter Driver Size | 1" | Tweeter Driver Size (mm) | 25.4 | Wireless Speaker | No | Woofer Driver Material | Carbon Fiber | Woofer Driver Size | 8" | Woofer Driver Size (mm) | 203.2 |
| Audio | |||||||||||||||||||||||||||||
| Maximum Frequency Response | 22 kHz | Minimum Frequency Response | 38 Hz | PMPO Output Power | 120W | RMS Output Power | 120W | RMS Output Power (W) | 120 | ||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||||||||
| Color | White | Cutout Diameter | 10.30" | Cutout Diameter (mm) | 261.62 | Depth | 8.60" | Depth (mm) | 218.44 | Diameter (mm) | 287.02 | Form Factor | In-ceiling, In-wall | Woofer Diameter | 8" | Woofer Diameter (mm) | 203.2 | ||||||||||||
| Product Information | |||||||||||||||||||||||||||||
| Diameter | 11.3" | ||||||||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||||||||
| Limited Warranty | Lifetime |
