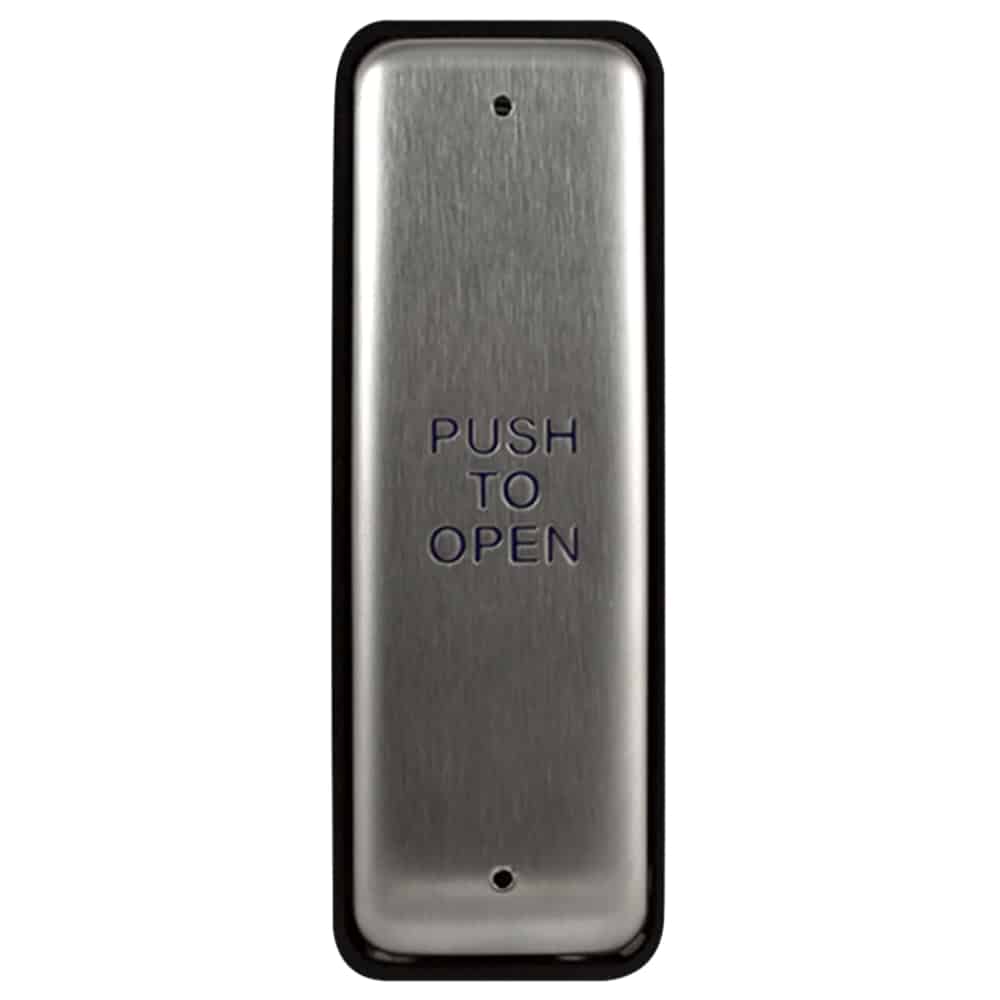

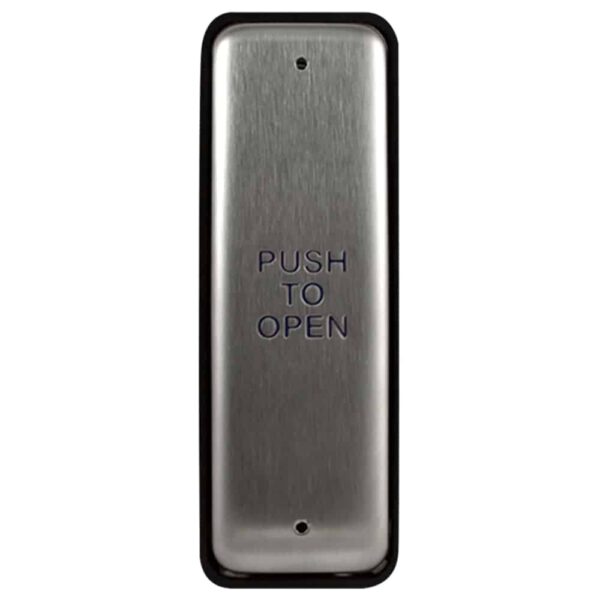

The PBJ series are jamb style push plates specifically designed for guide rail applications, door jamb mounting or other applications where mounting space is limited. With a variety of graphic options and finishes, BEA provides a complete line of jamb style push plates for any application.
| FACEPLATE MATERIAL | 16 gauge, 304 2B Stainless Steel |
|---|---|
| BACKPLATE MATERIAL | 1⁄8” thick, Aluminum |
| MOUNTING SCREWS | Stainless Steel, 6-32 × 1” & 8-32 × 1” Allen Head Size: 5⁄64 |
| CHERRY SWITCH | Single-pole, 15 A, COM / NO / NC, UL Recognized |
| COMPATIBLE WIRELESS FREQUENCIES | 900, 433 or 300 MHz |
| FACEPLATE DIMENSIONS | 1 ½” (W) × 4 ¾” (H) × 31⁄50“ (D) |
| Weight | 1 lbs |
|---|
This item: 10PBJ BEA Activation Plates
$78.79
$78.79
