BEA’s MAGIC SWITCH® Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings. Using microwave technology, BEAs MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards. The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.

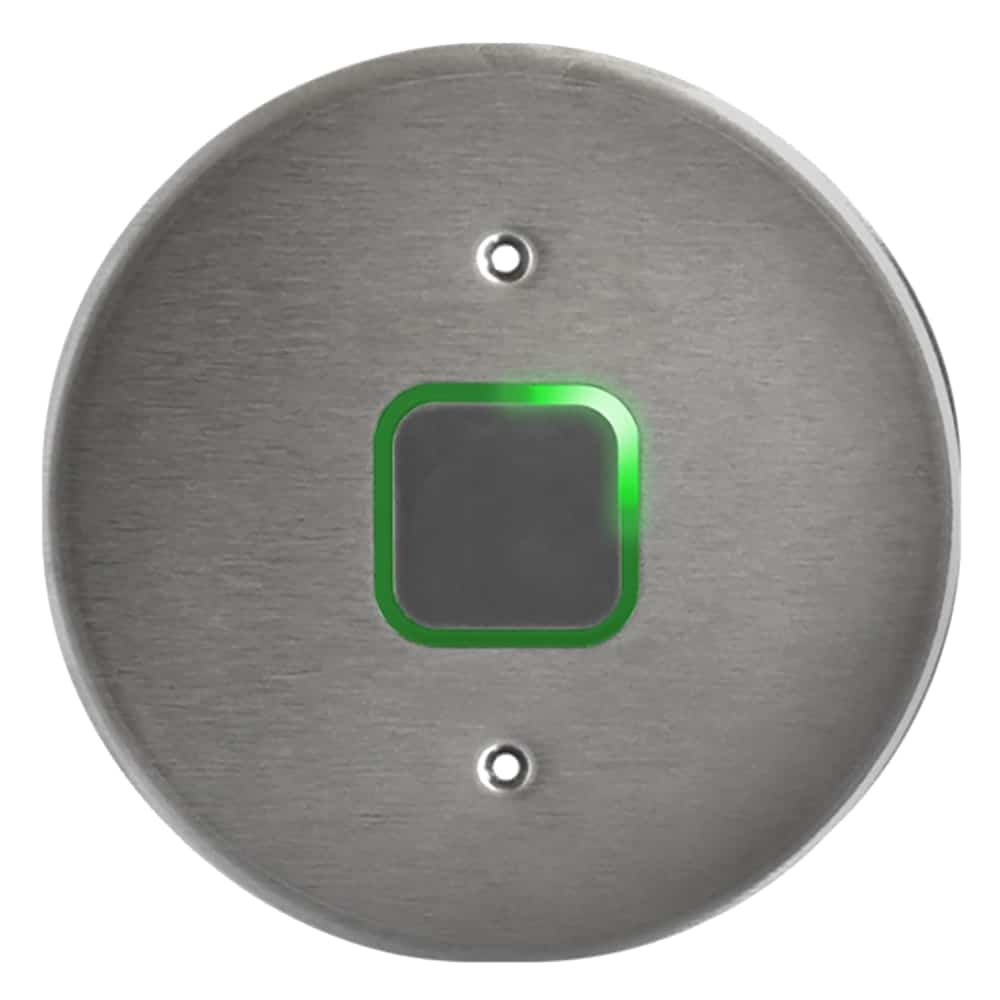

10MS41-RP BEA Touchless Actuators
Microwave Touchless Actuator, Round Plate, Plain, Adjustable 4 to 24 In, 12-24 VAC/DC, Stainless Steel
$365.70
This item: 10MS41-RP BEA Touchless Actuators
$365.70
$365.70
| TECHNOLOGY RADIATED FREQUENCY RADIATED POWER DENSITY | Microwave Doppler Radar 24.125 GHz < 5 mW/cm2 |
|---|---|
| DETECTION MODE | Motion (bidirectional) |
| DETECTION RANGE | 4 – 24” (adjustable) |
| OUTPUT MAX. CONTACT VOLTAGE MAX. CONTACT CURRENT MAX. SWITCHING POWER | Relay with switch-over contact (voltage-free) 60 VDC / 125 VAC 1A (resistive) 30W DC / 60 VAC |
| OUTPUT HOLD TIME | 0.5 – 30 s |
| SUPPLY FREQUENCY | 50 – 60 Hz |
| SUPPLY VOLTAGE | 12 – 24 VAC ±10% 12 – 24 VDC +30% / -10% |
| POWER CONSUMPTION | < 1.5 W |
| WIRE GAUGE* | 26 – 22 AWG |
| WEIGHT | 1 lbs |
| MATERIAL | Stainless Steel |
| TEMPERATURE RANGE | -4 – 131 °F |
| IP RATING** | IP55 Apply silicone to achieve IP65 |
| DIMENSIONS (OVERALL) SINGLE GANG DOUBLE GANG ROUND | 4 ½” (H) × 2 ¾” (W) × 1 1⁄8” (T) 4 ½” (H) × 4 ½” (W) × 1 1⁄8” (T) 6” (H/W) × 1 1⁄8” (T) 4 ½” (H) × 1 ¾” (W) × 1 1⁄8” (T) |
| CERTIFICATION | EMC: 2004 / 108 / EC FCC: G9B-210161 IC: 4680A-210161 |
