BEA’s MAGIC SWITCH Family utilizes proven microwave motion technology to ensure consistent, dependable touchless activation and can be adjusted to comply with the ANSI 156.10 knowing act standard. The MS31 detects moving objects such as a hand, cart or wheelchair and reduces touchpoints in high traffic areas commonly found in shopping and transportation centers. Applications requiring hygienic activation include hospitals, pharmacies, clean rooms and foodservice facilities.

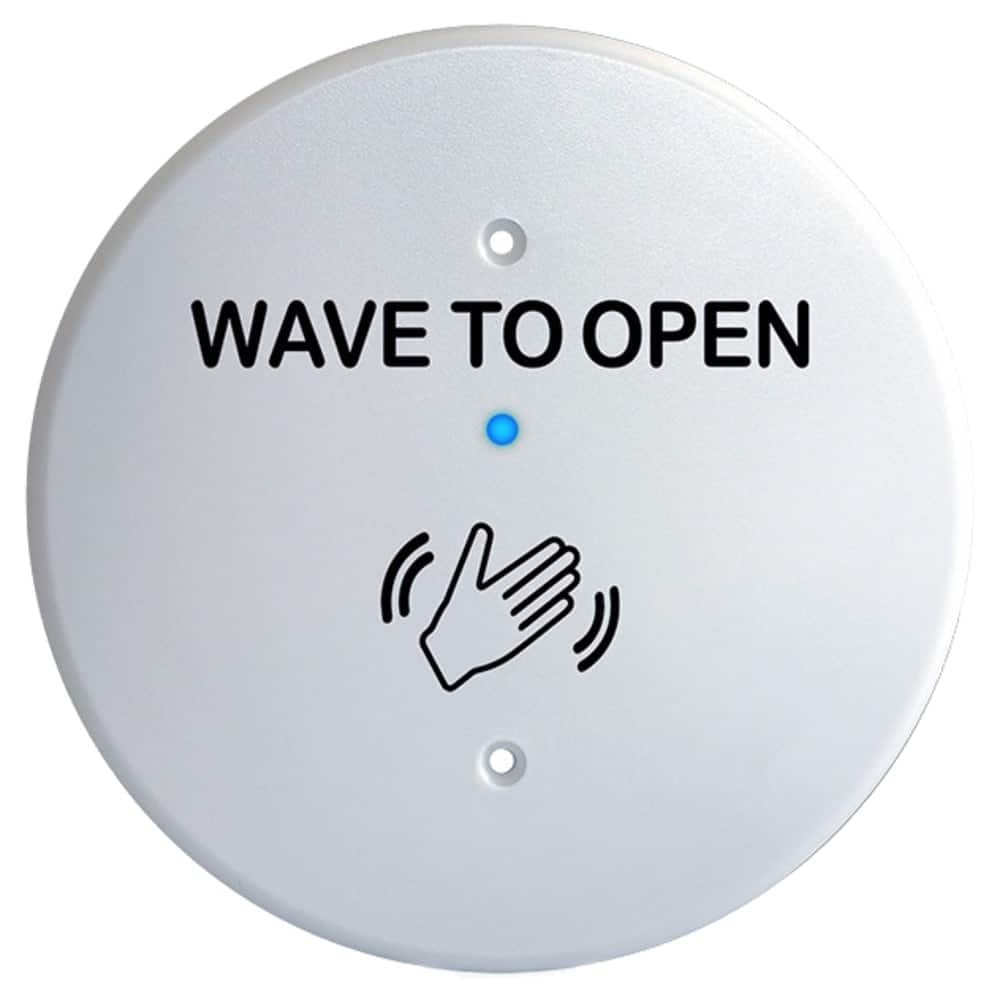

10MS31R-W BEA Touchless Actuators
Microwave Touchless Actuator, Round Plate, Text & Hand Logo, Adjustable 4 to 24 In, 12-24 VAC/DC, White
$296.80
Buy Now
This item: 10MS31R-W BEA Touchless Actuators
$296.80
$296.80
| TECHNOLOGY RADIATED FREQUENCY RADIATED POWER DENSITY | Microwave Doppler Radar 24.125 GHz < 5 mW / cm² |
|---|---|
| DETECTION RANGE | 4 – 24” (adjustable) |
| OUTPUT MAX. CONTACT VOLTAGE MAX. CONTACT CURRENT MAX. SWITCHING POWER | Relay with switch-over contact (voltage-free) 60 VDC / 125 VAC 1 A (resistive) 30 W (DC) / 60 VA (AC) |
| OUTPUT HOLD TIME | 0.5 – 30 s |
| SUPPLY FREQUENCY | 50 – 60 Hz |
| SUPPLY VOLTAGE* | 12 – 24 VAC ±10%, 12 – 24 VDC +30% / -10% |
| POWER CONSUMPTION | < 1.5 W |
| WEIGHT | 1 lbs |
| MATERIAL | PC, PE |
| TEMPERATURE RANGE | -4 – 131 ºF (-20 – 55 ºC) |
| IP RATING | IP54 |
| DIMENSIONS SINGLE GANG JAMB PLATE DOUBLE GANG ROUND PLATE | 4 ½” (H) × 2 ¾” (W) × ¼” (T) 4 ½” (H) × 1 ¾” (W) × ¼” (T) 4 ½” (H) × 4 ½” (W) × ¼” (T) 6” (D) × ¼” (T) |
| CERTIFICATION | EMC: 2004 / 108 / EC FCC: G9B-210161 IC: 4680A-210161 |
Downloads
MS31 Datasheet
MS31 User Guide
Application Note – Swing Door Wiring Matrix
Application Note – Sliding Door Wiring Matrix
| Weight | 1 lbs |
|---|
