FALCON EX Motion Sensor, Explosion-Proof / Flame-Proof Housing, Low Mounting Heights, 100 ft cable, 12 to 24 V AC/DC

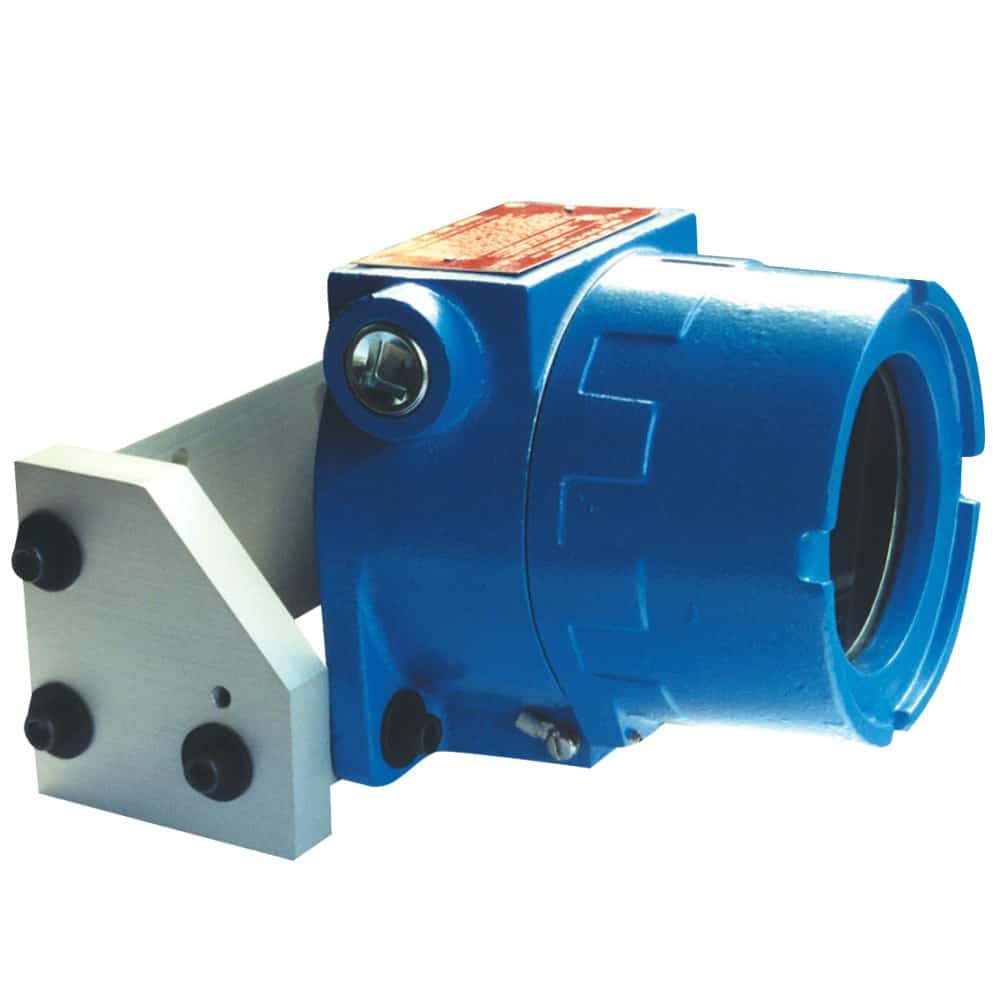

10FALCONEXXL100 BEA Microwave Sensor
FALCON EX Motion Sensor, Explosion-Proof / Flame-Proof Housing, Low Mounting Heights, 100 ft cable, 12 to 24 V AC/DC
$2,011.88
This item: 10FALCONEXXL100 BEA Microwave Sensor
$2,011.88
$2,011.88
| TECHNOLOGY RADIATED FREQUENCY TRANSMITTER RADIATED FREQUENCY RADIATED POWER DENSITY | Microwave Doppler Radar 24.150 GHz < 20 dBm EIRP < 5 mW/cm2 |
|---|---|
| DETECTION MODE | Motion |
| DETECTION ZONE FALCON EX FALCON EX XL FALCON EX WIDE | 13’ × 16’ @ 16’ 13’ × 6 ½’ @ 8 1⁄5’ 30’ × 11’ @ 21’ Typical at 30° and field size 9 |
| TILT ANGLES | -90 – 30° in elevation |
| OUTPUT MAXIMUM CONTACT VOLTAGE MAXIMUM CONTACT CURRENT MAXIMUM SWITCHING POWER | Relay (free of potential change-over contact) 42 VAC / VDC 1 A (resistive) 30 W (DC); 60 VA (AC) |
| MINIMUM DETECTION SPEED | 2 in / s |
| MAINS FREQUENCY | 50 – 60 Hz |
| SUPPLY VOLTAGE | 12 – 24 VAC; ±10% 12 – 24 VDC; 30% / −10% |
| MAXIMUM POWER CONSUMPTION | < 2 W |
| MOUNTING HEIGHT FALCON EX FALCON EX XL FALCON EX WIDE | 11 ½ – 23’ 6 ½ – 11 ½’ 11 ½ – 21’ |
| DIMENSIONS (HOUSING & BRACKET) | 5 ½” (L) × 7 ½” (W) × 9” (H) |
| ELECTRICAL ACCESS NPT PIPE THREAD | ¾" |
| WEIGHT | 10 lbs |
| CABLE LENGTH | See User’s Guide for reference (Housing); Powder-coated steel (Bracket) |
| HOUSING / BRACKET MATERIAL | Copper-free Aluminum / Aluminum |
| TEMPERATURE RANGE | -22 – 140 °F |
| HOUSING CERTIFICATION* | See User’s Guide |
| NORM CONFORMANCE | EMC: 2004 / 108 / EC R&TTE: 1999 / 5 / EC FM: Approved Instrument Housing |
| Weight | 10 lbs |
|---|
