FALCON Motion Sensor, 11.5′ to 23′ Mounting Height, 33′ of Cable, Multiple Detection Options, 12 to 24 V AC/DC

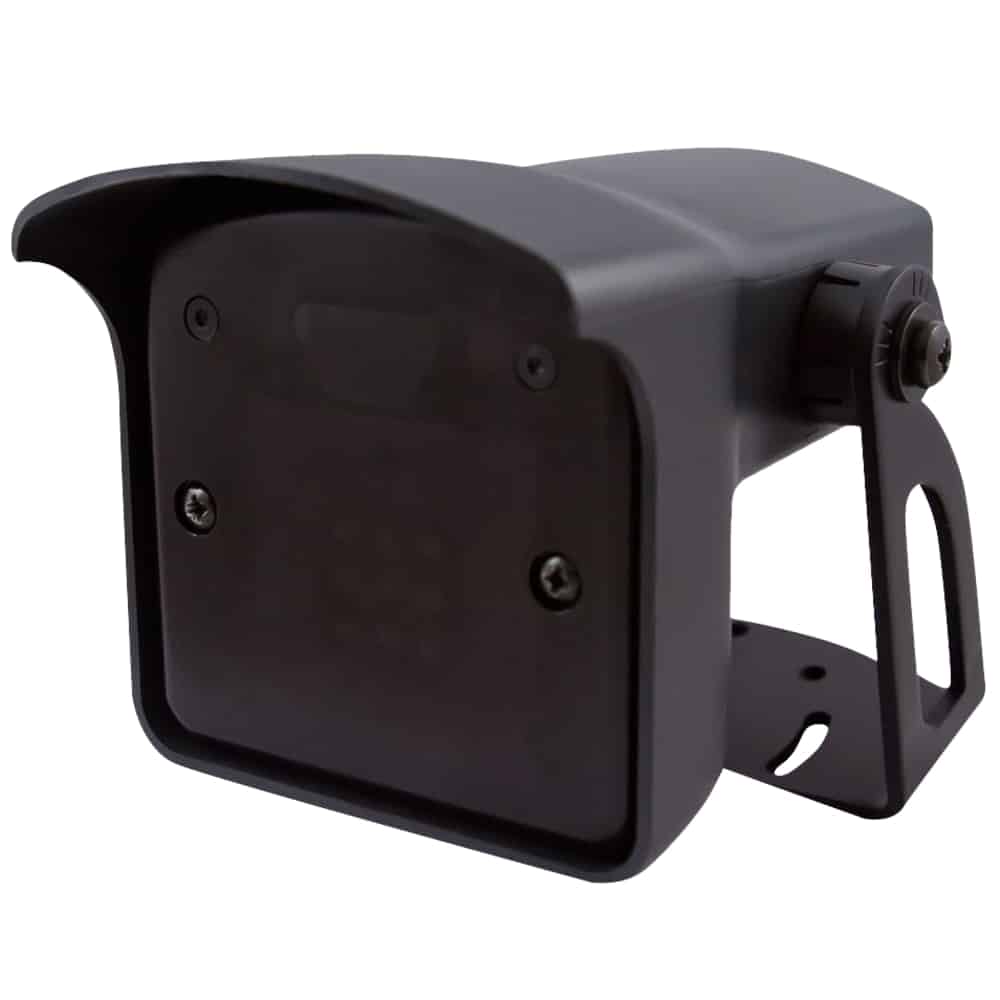

10FALCON BEA Microwave Sensor
FALCON Motion Sensor, 11.5′ to 23′ Mounting Height, 33′ of Cable, Multiple Detection Options, 12 to 24 V AC/DC
$561.80
Buy Now
This item: 10FALCON BEA Microwave Sensor
$561.80
$561.80
| TECHNOLOGY RADIATED FREQUENCY TRANSMITTER RADIATED FREQUENCY RADIATED POWER DENSITY | Microwave Doppler Radar 24.150 GHz < 20 dBm EIRP < 5 mW/cm2 |
|---|---|
| DETECTION MODE | Motion |
| DETECTION ZONE FALCON FALCON XL FALCON WIDE | 13’ × 16’ @ 16’ 13’ × 6 ½’ @ 8 1⁄5’ 30’ × 11’ @ 21’ Typical at 30° and field size 9 |
| TILT ANGLES | 0° – 180° |
| OUTPUT MAXIMUM CONTACT VOLTAGE MAXIMUM CONTACT CURRENT MAXIMUM SWITCHING POWER | Relay (free of potential change-over contact) 42 VAC / VDC 1 A (resistive) 30 W (DC); 60 VA (AC) |
| MINIMUM DETECTION SPEED | 2 in / s* |
| MAINS FREQUENCY | 50 – 60 Hz |
| SUPPLY VOLTAGE | 12 – 24 VAC; ±10% 12 – 24 VDC; ±30% / −10% |
| MAXIMUM POWER CONSUMPTION | < 2 W |
| MOUNTING HEIGHT FALCON FALCON XL FALCON WIDE | 11 ½ – 23’ 6 ½ – 11 ½’ 11 ½ – 21’ |
| DIMENSIONS | 3 ¾“ (W) × 4“ (H) × 5“ (L) |
| MATERIALS | ABS & Polycarbonate |
| TEMPERATURE RANGE | -22 – 140 ºF |
| DEGREE OF PROTECTION | IP65 |
| NORM CONFORMANCE | EMC: 2004 / 108 / EC R&TTE: 1999 / 5 / EC |
