Versatile Sensor can be Used on Single Swing, Simultaneous Pair, Dual Egress and Folding Doors When Coupled With an Interface / Lockout Device. Adjustable Tilt Angle From Zero to 10 Degrees. Separate Pattern Width, Depth, and Sensitivity for Open and Closed Door States Offers Maximum Flexibility
| TECHNOLOGY | Active Infrared |
|---|---|
| DETECTION MODE | Presence |
| INSTALLATION HEIGHT (VARIABLE) | 9’ 0” maximum (recommended: 6’ 6” – 8’ 0”) |
| MOUNTING ANGLES BODYGUARD ONLY WITH BODYMOUNT | 5°, 10° ( factory default setting: 5° ) 0°, 5°, 10° |
| POWER SUPPLY | 12 – 24 VAC / VDC ±10% |
| FREQUENCY | 50 – 60 Hz |
| OUTPUT MAXIMUM CONTACT VOLTAGE MAXIMUM CONTACT CURRENT MAXIMUM POWER SUPPLY | 60 VDC / 125 VAC 1 A 30 W (DC), 60 VA (AC) |
| RELAY HOLD TIME | 0.5 – 9 s |
| OPERATING TEMPERATURE | −22 °F – 140 °F |
| IMMUNITY | Immune to electrical and radio frequency interference |
| CABLE | 4’ |
| WEIGHT | 1 lb 11 oz |
| DIMENSIONS | 12” (W) × 2” (H) × 2” (D) |
| MATERIAL | Aluminum & ABS plastic |
| HOUSING | Black anodized aluminum |
| Weight | 2 lbs |
|---|

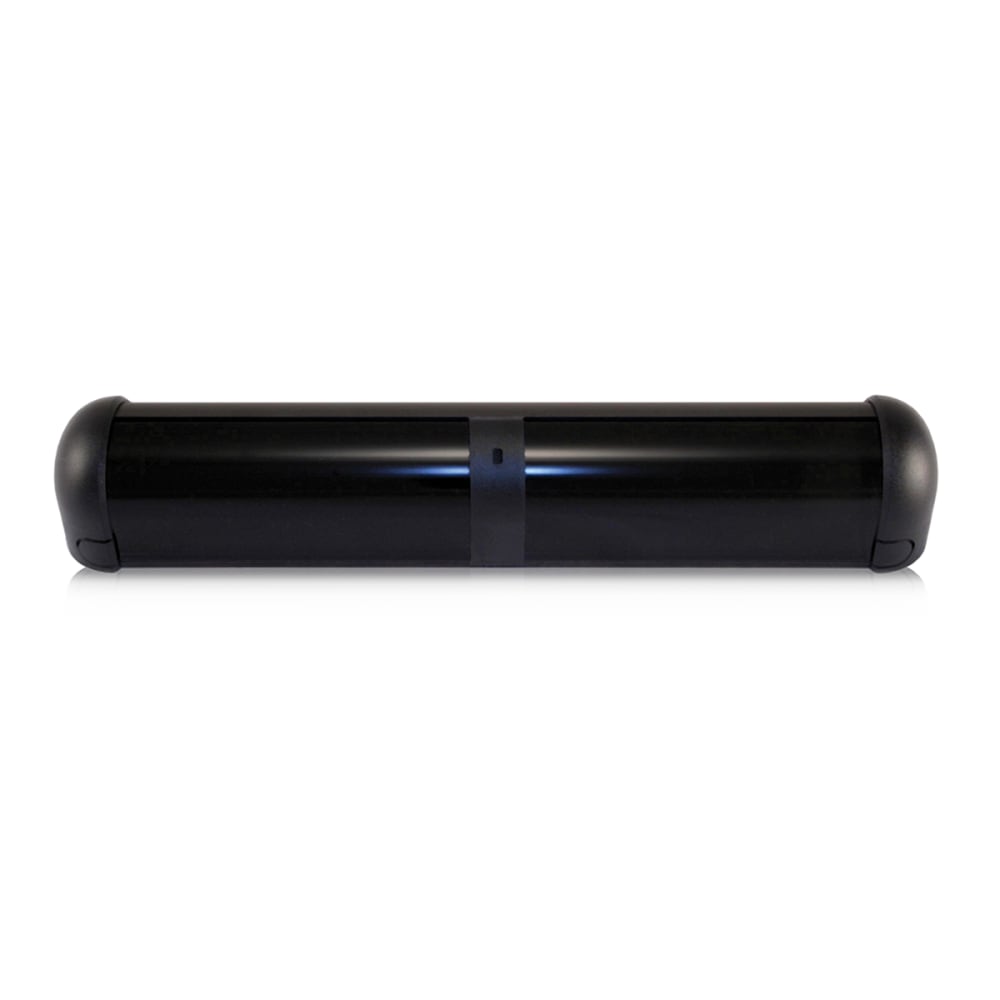

This item: 10BODYGUARDT BEA Motion Sensor
$511.31
$511.31
