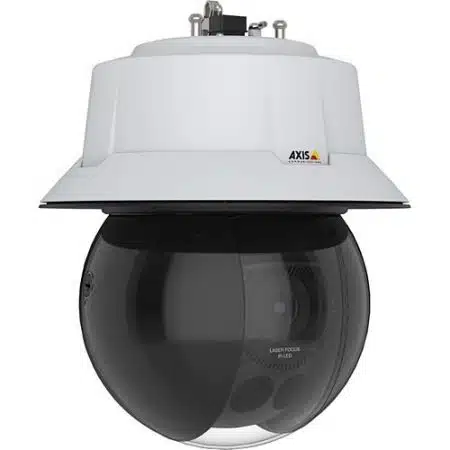

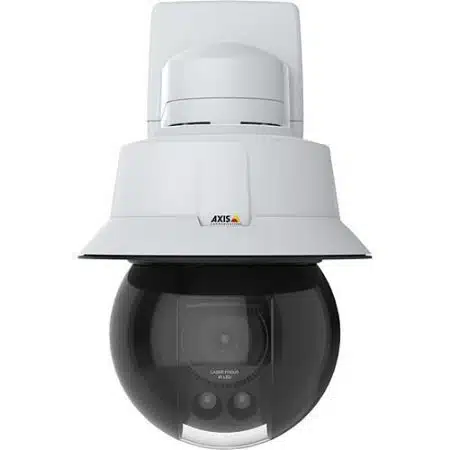

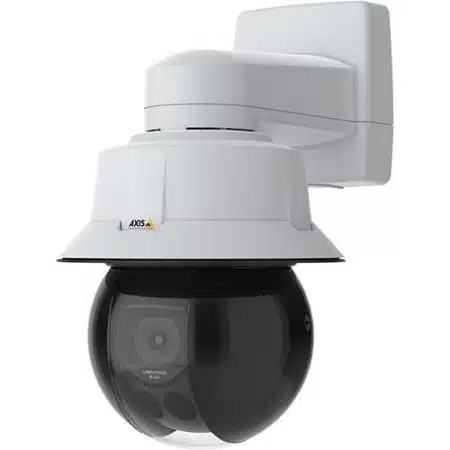

AXIS Q6315-LE Q63 Series 1080p HDTV Outdoor PTZ IR IP Camera, 31x Optical Zoom, White (Replaces
1/2″ sensor with 31x optical zoom
IR illumination, D/N functionality
Autotracking 2, orientation aid and AXIS Object
$4,181.46
Product Overview
Ideal for city surveillance, AXIS Q6315-LE offers a ½” sensor and 31x optical zoom. It features laser focus for precise focus every time – even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
Super surveillance- day and night
AXIS Q6315-LE features very light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it’s perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus- every time. It’s possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Built-in advanced analytics
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
Keeping you secure
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
Main Features
- 1/2″ sensor with 31x optical zoom
- IR illumination, D/N functionality
- Autotracking 2, orientation aid and AXIS Object Analytics
- Laser focus for precise focus with Quick-zoom <1sec
- TPM, FIPS 140-2 level 2 certified
| Specifications | |||||||||||||||||||||||
| Part Number | 01925-004 | NDAA Compliant | Yes | Product Line | Q | Product Model | Q6315-LE | Product Name | Q6315-LE PTZ Network Camera | Product Series | Q63 | Product Type | Network Camera | Weight (Approximate) (g) | 4808.079 | ||||||||
| Technical Information | |||||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 2MP | Field of View | Horizontal field of view: 60.6°- 2.0° - Vertical field of view: 36.5°- 1.1° | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/1.36 | Maximum Frame Rate | 60 fps | Minimum Focal Length | 6.91 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 31x | Power Consumption (PoE) (W) | 60 |
| Camera | |||||||||||||||||||||||
| Night Vision Distance | 984.25 ft | Wide Dynamic Range | Yes | ||||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 1920 x 1080 | ||||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||||
| Maximum Operating Temperature | 122°F (50°C) | Minimum Operating Temperature | -58°F (-50°C) | Operating Humidity | 100% | ||||||||||||||||||
| Exposure | |||||||||||||||||||||||
| Longest Shutter Speed | 1/2 Second | Shortest Shutter Speed | 1/111000 Second | ||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||||
| Lens | |||||||||||||||||||||||
| Focal Length | 214.64 mm | Lens Included | Yes | Maximum Focal Length | 214.64 mm | Minimum Aperture | f/4.6 | ||||||||||||||||
| Network & Communication | |||||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||||
| Others | |||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | White | Color Family | White | Durability | Dust Resistant, Vandal Resistant, Water Resistant | Form Factor | Dome | Height | 10.3" | Product Color | White | Weight (Approximate) | 10.60 lb | ||||||||||
| Power Description | |||||||||||||||||||||||
| Input Voltage | 100V AC, 240V AC | ||||||||||||||||||||||
| Product Information | |||||||||||||||||||||||
| Diameter | 7.6" | Mount Type | Bracket Mount, Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Recessed Mount, Wall Mount | ||||||||||||||||||||
| Projection Lens | |||||||||||||||||||||||
| Minimum Focal Length (mm) | 6.91 | ||||||||||||||||||||||
| Storage | |||||||||||||||||||||||
| Recording Formats | Full HD | Storage Type | Memory Card | ||||||||||||||||||||
| Video | |||||||||||||||||||||||
| Maximum Frame Rate (fps) | 60 | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Features | Auto Tracking, Automatic Defog, Automatic White Balance, Built-in IR LED, Cross Line Detection, Day/Night, Electronic Image Stabilization, HTTPS Encryption, Human Detection, Password Protection, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66, IP67 | Package Contents | AXIS Q6315-LE PTZ Network Camera Installation Guide Windows Decoder 1-user License 60 W Midspan (Including Power Cable) IP66 Rated Network Connector Repaint Template Paint Paper | TAA Compliant | Yes | ||||||||||||
| Weight | 11 lbs |
|---|
