AXIS Q6078-E Q60 Series Outdoor UHD 4K PTZ IP Camera, 20x Optical Zoom,
UHD 4K with 20x optical zoom
Outstanding images with great details
Zipstream with support for
$4,438.86
Product Overview
This robust, high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It’s ideal for demanding situations in wide, outdoor areas such as cities, airports, and critical infrastructure applications.
Great overviews and superior detail
Based on a powerful Axis chipset, AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage, it delivers great overviews, and you can zoom in for detailed views with the clearest, sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements.
Whenever, wherever it’s needed
This outdoor, vandal-resistant camera is IP66, NEMA 4X, and IK10-rated to protect against dust, rain, snow, and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore, AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles, all tailored to your specific needs.
Designed with cybersecurity in mind
AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
Main Features
- UHD 4K with 20x optical zoom
- Outstanding images with great details
- Zipstream with support for H.264/H.265
- AXIS Object Analytics
- Built-in cybersecurity features
Specifications | |||||||||||||||||
Part Number | 02148-004 | NDAA Compliant | Yes | Product Line | Q | Product Model | Q6078-E | Product Name | Q6078-E PTZ Camera | Product Series | Q60 | Product Type | Network Camera | ||||
Technical Information | |||||||||||||||||
Connectivity Technology | Wired | Effective Camera Resolution | 8MP | Field of View | 68.3°-4.2° - 42.1°-2.34° | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/2 | Maximum Frame Rate | 60 fps | Minimum Focal Length | 4.4 mm | Optical Zoom | 20x |
Camera | |||||||||||||||||
Wide Dynamic Range | Yes | ||||||||||||||||
Display & Graphics | |||||||||||||||||
Color Supported | Color | Maximum Video Resolution | 3840 x 2160 | ||||||||||||||
Environmental Conditions | |||||||||||||||||
Maximum Operating Temperature | 122°F (50°C) | Minimum Operating Temperature | -58°F (-50°C) | Operating Humidity | 100% | ||||||||||||
Exposure | |||||||||||||||||
Longest Shutter Speed | 1 Second | Shortest Shutter Speed | 1/10000 Second | ||||||||||||||
Interfaces/Ports | |||||||||||||||||
Network (RJ-45) | Yes | ||||||||||||||||
Lens | |||||||||||||||||
Focal Length | 4.4-88.4 mm | Lens Included | Yes | Maximum Focal Length | 88.40 mm | Minimum Aperture | f/3.8 | ||||||||||
Network & Communication | |||||||||||||||||
Remote Management | Yes | ||||||||||||||||
Physical Characteristics | |||||||||||||||||
Color | White | Color Family | White | Durability | Dust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Vandal Resistant | Form Factor | Dome | Height | 10.6" | Product Color | White | Weight (Approximate) | 8.27 lb | Width | 9.1" | ||
Power Description | |||||||||||||||||
Input Voltage | 240V AC | ||||||||||||||||
Product Information | |||||||||||||||||
Diameter | 9.1" | Mount Type | Bracket Mount, Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Recessed Mount, Wall Mount | ||||||||||||||
Projection Lens | |||||||||||||||||
Minimum Focal Length (mm) | 4.4 | ||||||||||||||||
Storage | |||||||||||||||||
Recording Formats | 4K | Storage Type | Memory Card | ||||||||||||||
Video | |||||||||||||||||
Maximum Frame Rate (fps) | 60 | ||||||||||||||||
Warranty | |||||||||||||||||
Limited Warranty | 5 Year | ||||||||||||||||
Miscellaneous | |||||||||||||||||
Features | Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66, IP67 | Package Contents | Q6078-E PTZ Camera | TAA Compliant | Yes | ||||||
Axis High PoE 60 W SFP Midspan 1-Port | |||||||||||||||||
RJ45 Push - Pull Connector (IP66) | |||||||||||||||||

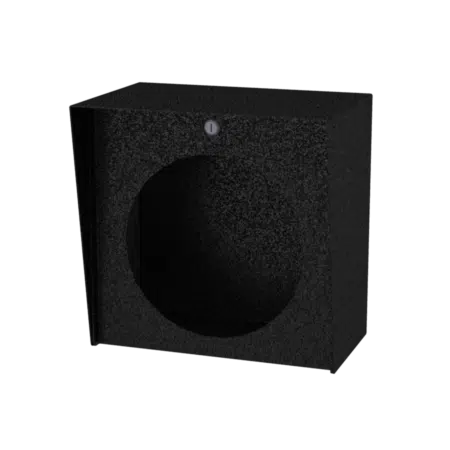

Sunshield | |||||||||||||||||
Installation Guide | |||||||||||||||||
Windows Decoder 1-User License |
Weight | 9 lbs |
---|
