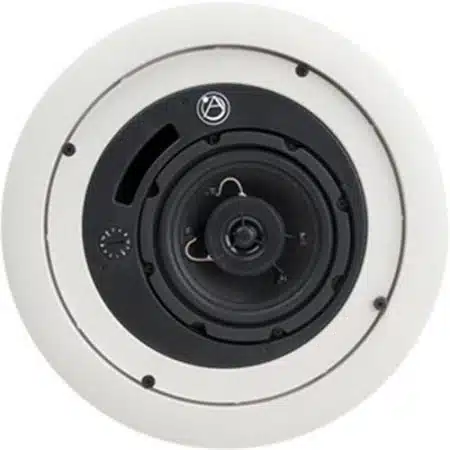

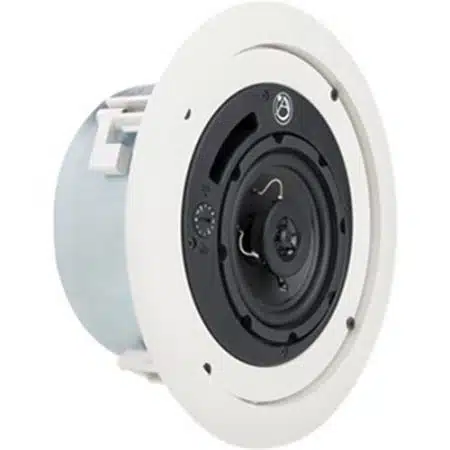

AtlasIED FAP42TC 4″ Shallow Mount Coaxial In-Ceiling Speaker with 16W 70V, 100V

The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
Handles up to 25W of RMS power
Listen to deep lows and euphoric highs with a frequency range of sound from 83 Hz-20

$133.49

Buy Now
SKU:FAP42TC

Product Overview

Atlas Sound’s FAP42TC combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42TC a perfect choice for low ceilings. The FAP42TC will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42TC is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

Main Features

  • The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
  • Handles up to 25W of RMS power
  • Listen to deep lows and euphoric highs with a frequency range of sound from 83 Hz-20 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers
  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
  • Low Depth (4″) Speaker System for Limited Space Applications
  • UL 1480
Specifications
Part Number FAP42TC Product Model FAP42TC Product Name FAP42TC Speaker Product Series Strategy II Product Type Speaker
Technical Information
Crossover Type 2-way Impedance 8 ohms Impedance (Ohm) 8 Maximum Frequency Response (Hz) 20000 Minimum Frequency Response (Hz) 83 Sensitivity 88 dB Sensitivity (dB) 88 Speaker Size 4" Tweeter Driver Material Dome Tweeter Driver Size 0.75" Tweeter Driver Size (mm) 18.999 Woofer Driver Size 4" Woofer Driver Size (mm) 101.6
Audio
Maximum Frequency Response 20 kHz Minimum Frequency Response 83 Hz Number of Speakers 2 RMS Output Power 25W RMS Output Power (W) 25
Physical Characteristics
Color White Diameter (mm) 266.7 Form Factor In-ceiling Height 4.3" Height (mm) 109.22 Speaker Installation Indoor
Product Information
Diameter 10.5"
