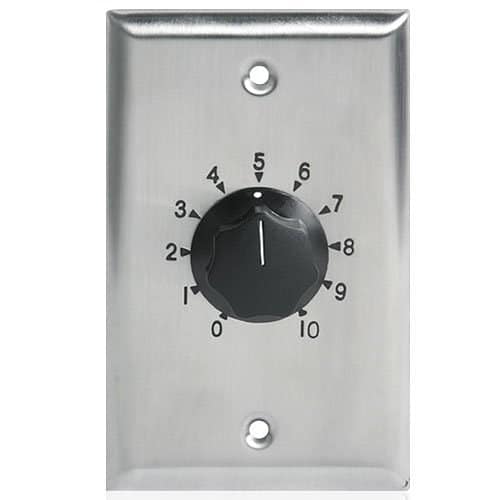

AtlasIED AT100 100W Single Gang Stainless-Steel 70.7V Commercial
10 Attenuation Steps Plus Positive Off
Mount into Most 1-Gang E.O. Boxes
Wall Plates are Stainless Steel with StAed and Filled Dial Scale, and a Skirted Black
$40.49
Product Overview
High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation.
Main Features
- 10 Attenuation Steps Plus Positive Off
- Mount into Most 1-Gang E.O. Boxes
- Wall Plates are Stainless Steel with StAed and Filled Dial Scale, and a Skirted Black Knob
| Specifications | |||||||||||||||||||
| Part Number | AT100 | Product Line | Amps/Attenuator | Product Model | AT100 | Product Name | AT100 Hard Wire Dimmer | Product Series | AT | Product Type | Hard Wire Dimmer | ||||||||
| Technical Information | |||||||||||||||||||
| Controllable Function | Volume Control | Dimmer Type | Rotary | ||||||||||||||||
| Physical Characteristics | |||||||||||||||||||
| Color | Black | Depth | 2.5" | Depth (mm) | 63.5 | Form Factor | Wall Mount | Height | 4.5" | Height (mm) | 114.3 | Product Color | Black | Speaker Installation | Indoor | Width | 2.8" | Width (mm) | 69.85 |
| Power Description | |||||||||||||||||||
| Input Voltage | 70.7V AC | Input Voltage (V AC) | 70.7 | Power Rating | 100W | Power Rating (W) | 100 | ||||||||||||
| Warranty | |||||||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Additional Information | Plate Type: Stainless Steel | Certifications & Standards | UL Listed/Standard: | Compatibility | Both Rail and Direct Attachment | ||||||||||||||
